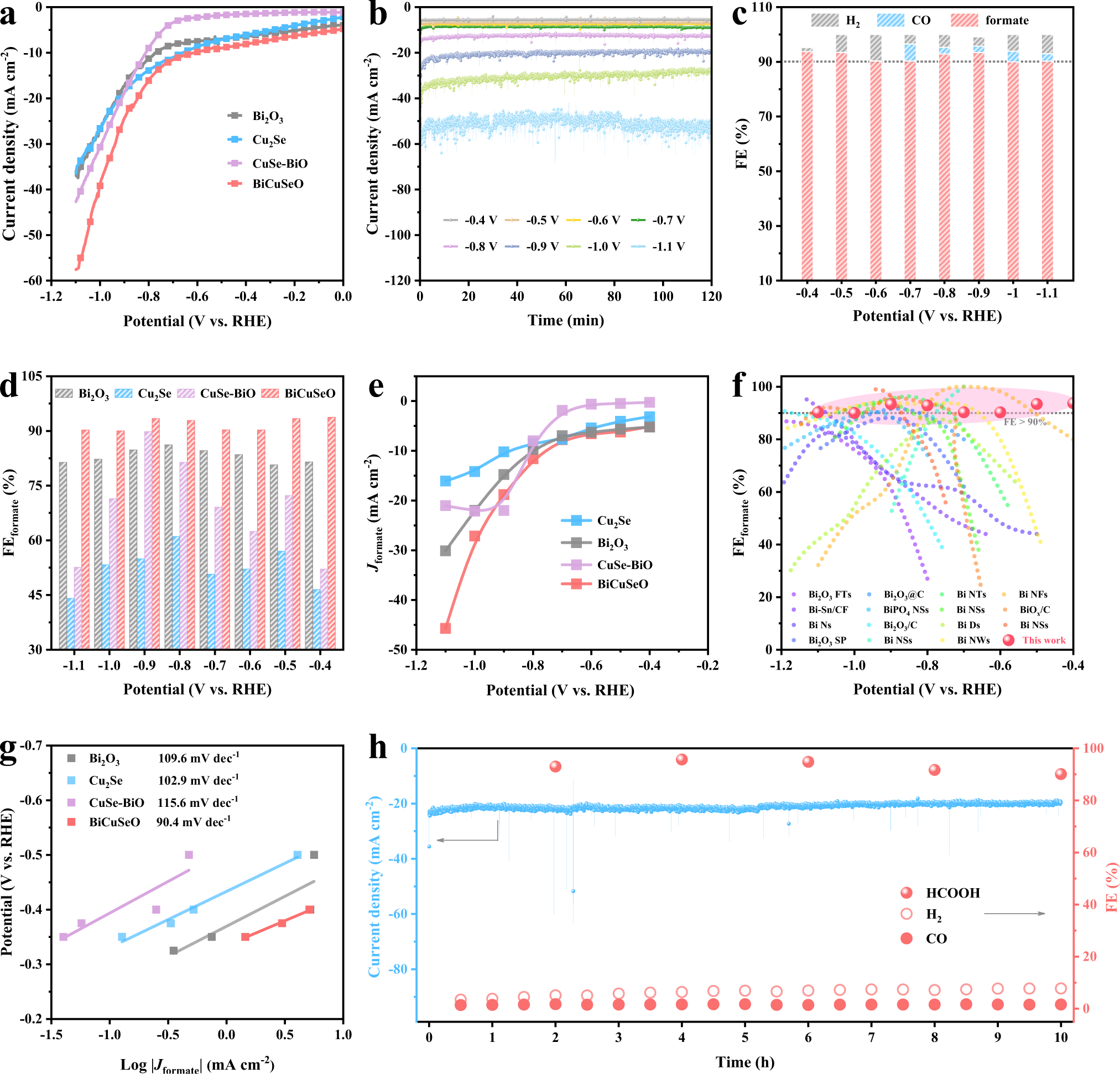

Fig. 2: CO2RR performance in 0.5 M KHCO3.
From: Active and conductive layer stacked superlattices for highly selective CO2 electroreduction
a LSV curves of BiCuSeO, Cu2Se, Bi2O3 Ns, and CuSe-BiO without iR compensation. b Chronoamperometric curves at different potentials. c FE of formate, CO and H2 for BiCuSeO Ns. d FEformate, e Jformate, and g Tafel slope comparisons of BiCuSeO, Cu2Se, Bi2O3 Ns, and CuSe-BiO. f FEformate comparison among the reported Bi-based catalysts and the BiCuSeO10, 26, 27, 32,33,34,35,36,37,38,39,40,41,42,43. h 10 h Chronoamperometry results for BiCuSeO at −0.9 V.
