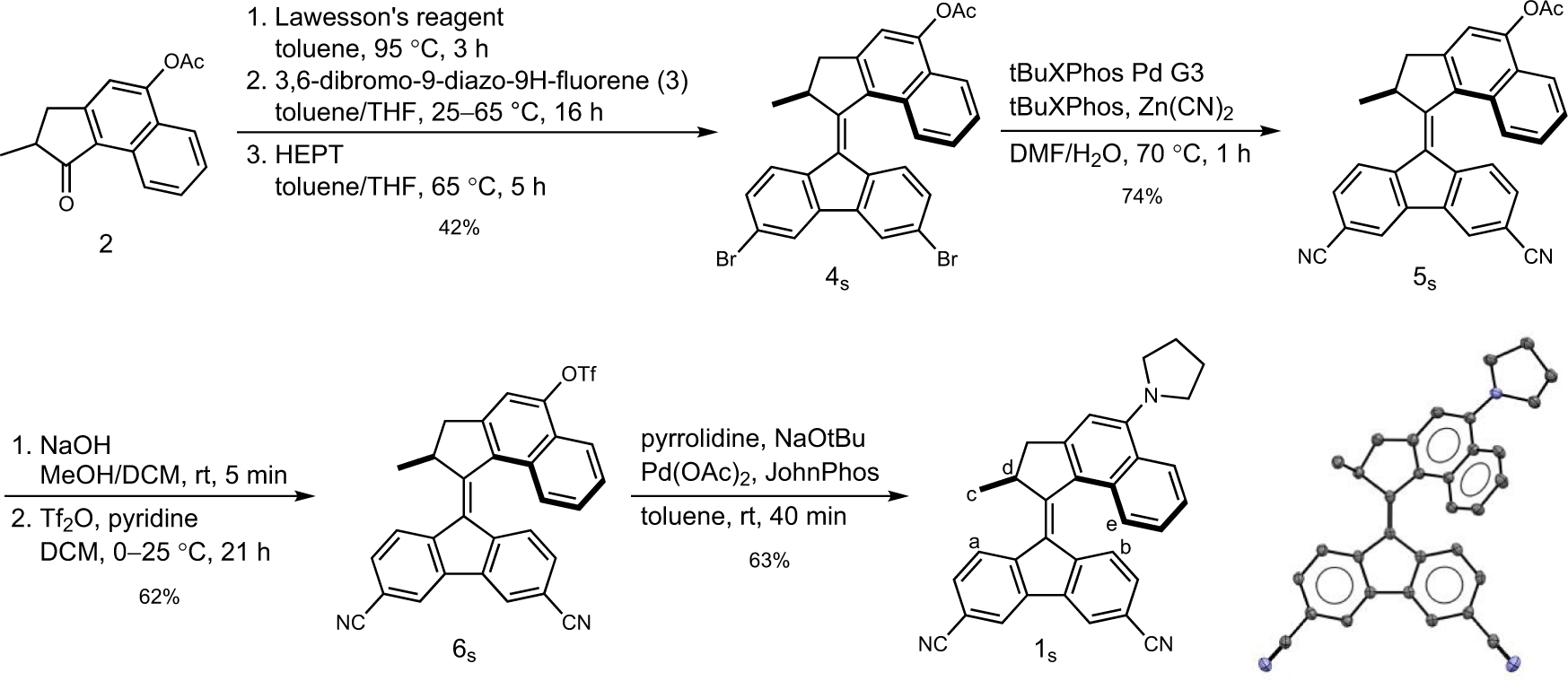

Fig. 2: Synthesis of 1s shown from the Barton-Kellogg Olefination.
From: Controlling forward and backward rotary molecular motion on demand
The displacement ellipsoid plot of the single-crystal X-ray structure of 1s is drawn at 50% probability and hydrogens are omitted for clarity (CCDC 2143227).
