Fig. 5: Anisotropic migration of photogenerated carriers.

From: Perylenetetracarboxylic acid nanosheets with internal electric fields and anisotropic charge migration for photocatalytic hydrogen evolution

Fig. 5

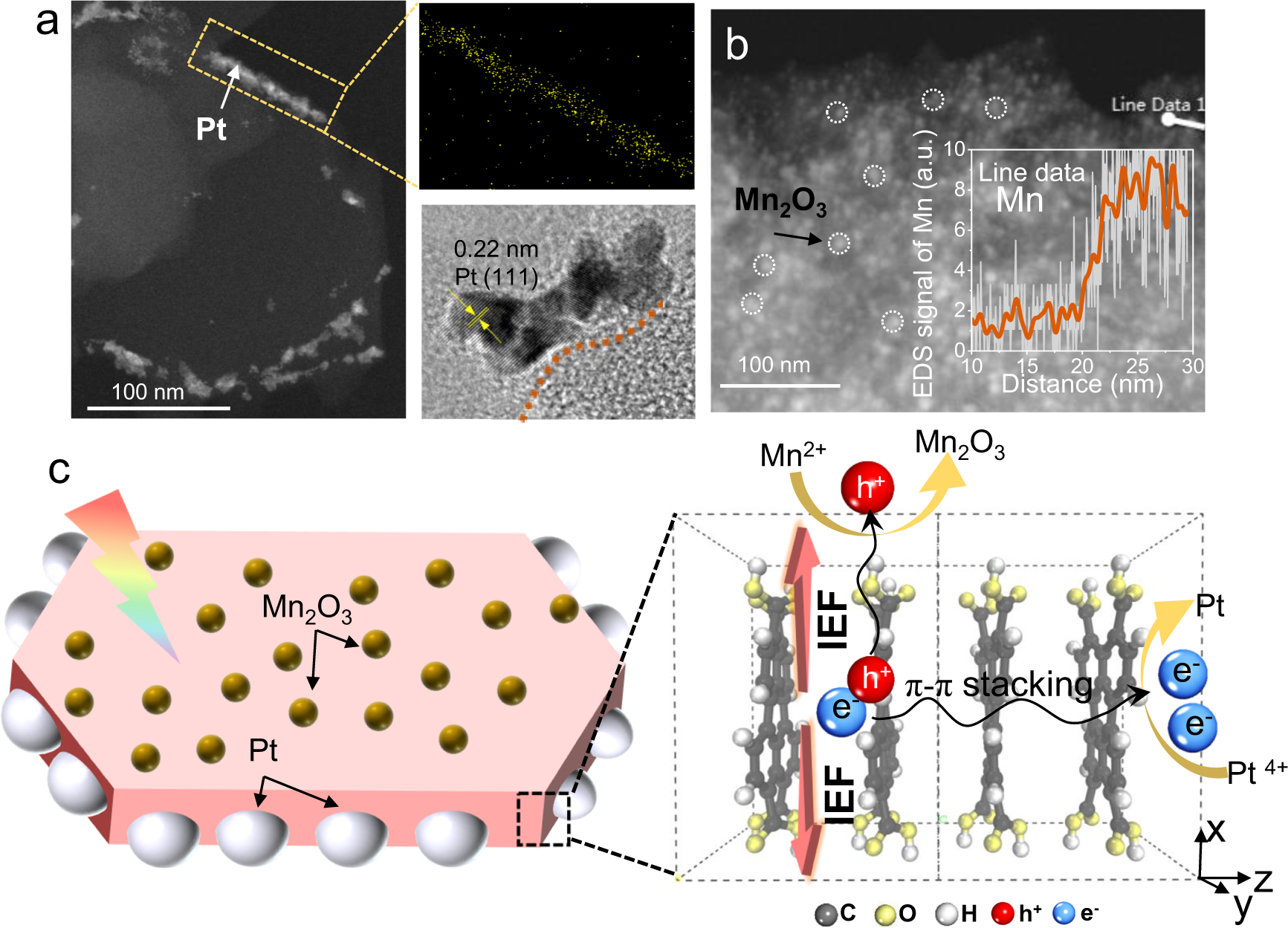

ADF-STEM photodeposition on PTA with a Pt and high resolution and mapping, b Mn2O3 (inset: Mn element liner scan). c Schematic illustration of Pt and Mn2O3 photodeposition on PTA under visible light (λ ≥ 420 nm). Deposition method: 10 mg of PTA was dispersed in 100 mL of deionized water, and 4 wt. % H2PtCl6 (weighed by Pt) or 5 wt. % MnCl2 (weighed by Mn) was added and exposed to visible light (λ ≥ 420 nm) for 3 h.
