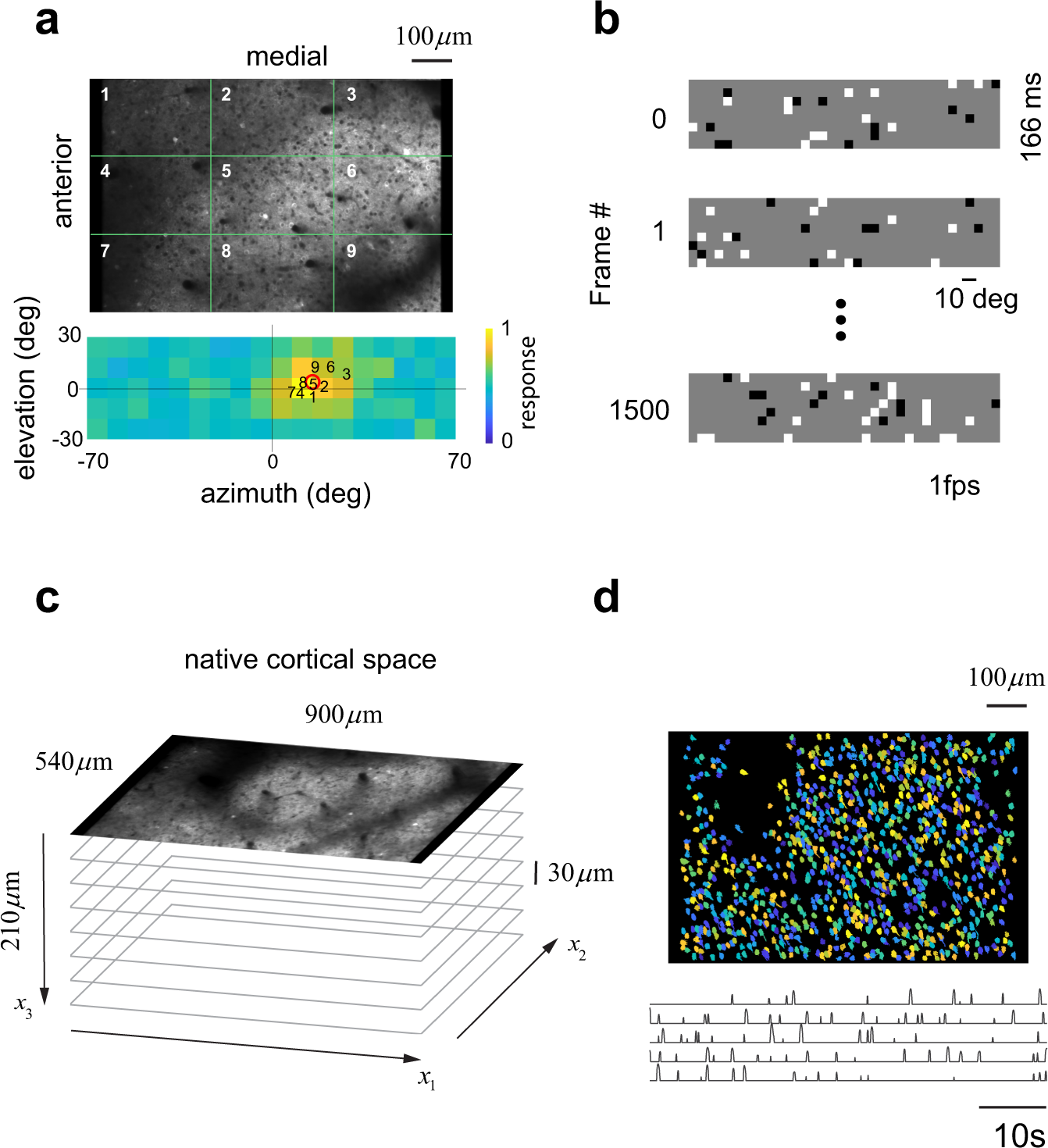

Fig. 1: Basic methods.

a Coarse retinotopic mapping. The average signal originating from nine sectors defined by a 3 × 3 grid on the field of view of the microscope were used to map the aggregate receptive field and determine its center. The image at the bottom shows the location of the centers for each sector superimposed on top of the aggregate receptive field for the entire population (normalized to its peak). b Sparse-noise stimulus. Images were flashed for 166 ms and presented at a rate of 1 per second on a wide field screen. c Volumetric sampling in primary visual cortex (see Methods for details on the volumes for each experiment). d Segmentation of regions of interest (ROIs) and five sample traces showing spike inference from calcium signals. For visualization, ROIs are assigned random colors.
