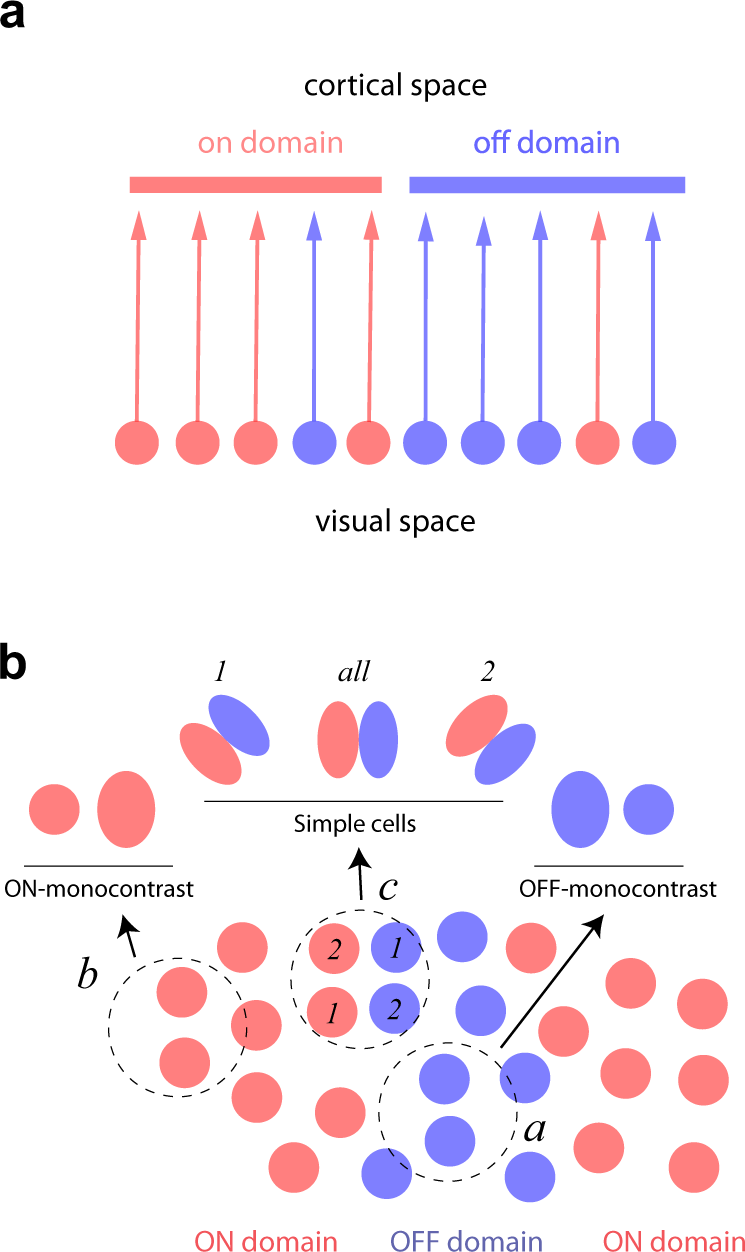

Fig. 3: A biased-input model of ON/OFF domains.

a The cartoon depicts a 1D version of the biased-input model. The bottom layer shows the location and polarities of ON/OFF cells in the visual field (ON=red, OFF=blue). The top layer shows the input of those signals into the cortex assuming an accurate retinotopy. Here, we readily see that fluctuations in the relative density of ON and OFF cells ought to follow a corresponding fluctuation in the density of ON and OFF receptive field locations in the visual field. Thus, ON/OFF domains could arise from a property of the input. Thalamic projections, of course, include axonal arborizations that are not depicted in this diagram to avoid clutter. b The cartoon represents a top view from the cortex of a set of geniculate ON and OFF-center inputs dominating the representation in different parts of the visual field. We assume an accurate retinotopy, so the spatial distribution of ON/OFF receptive fields also represents the distribution of ON/OFF afferents into the cortex. We hypothesize that clusters of ON inputs establish cortical ON domains, and clusters of OFF inputs define OFF domains. Dashed circles represent neighborhoods over which three different cortical cells can sample the geniculate inputs. Such areas are determined by the extent of thalamic arborizations and the size of cortical dendritic trees. Cortical cells with access just to (a) OFF or (b) ON inputs will develop mono-contrast receptive fields with a single subregion of the corresponding polarity. Cortical cells with access to both types of signals (c) can develop receptive fields with two subregions (three possible examples are illustrated).
