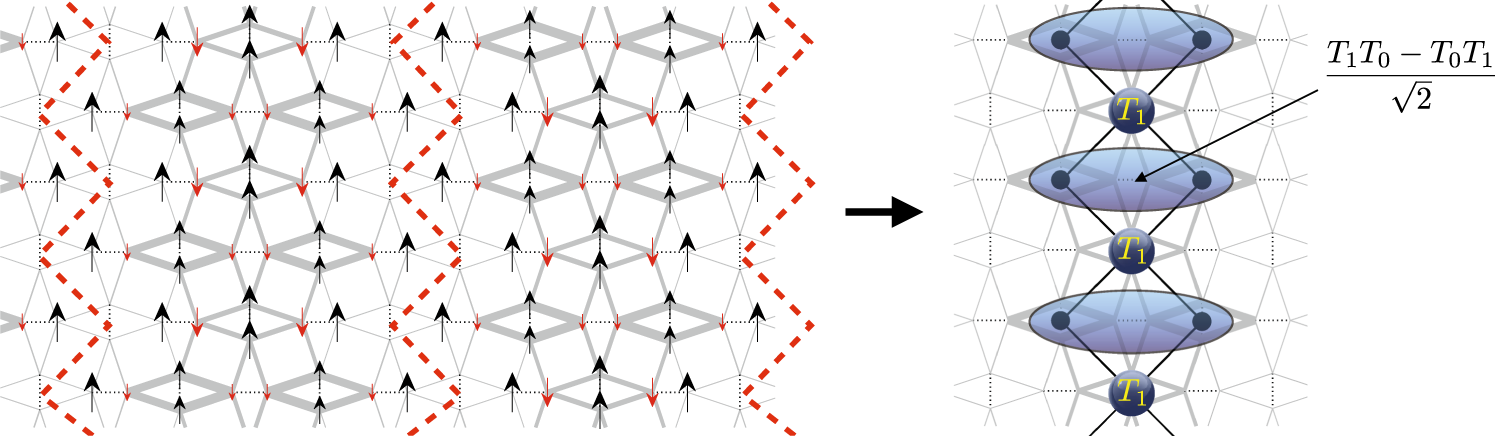

Fig. 4: Nature of the high-P 1/5 plateau.

From: Discovery of quantum phases in the Shastry-Sutherland compound SrCu2(BO3)2 under extreme conditions of field and pressure

Fig. 4: Nature of the high-P 1/5 plateau.The alternative text for this image may have been generated using AI.

The spin structure consists of vertical stripes of partially polarized full plaquettes which are separated by vertical singlets along the red dashed line. Each stripe can effectively be described by a spin-1 diamond chain in a magnetic field at filling 2/3, in which polarized S = 1 spins (T1) and dimer triplets, made of an antisymmetric combination of T1 and T0, are alternating.
