Fig. 2: Characterization of the charge-transport properties of the monolayers of different biocomplexes on PCBA.

From: Printable logic circuits comprising self-assembled protein complexes

Fig. 2

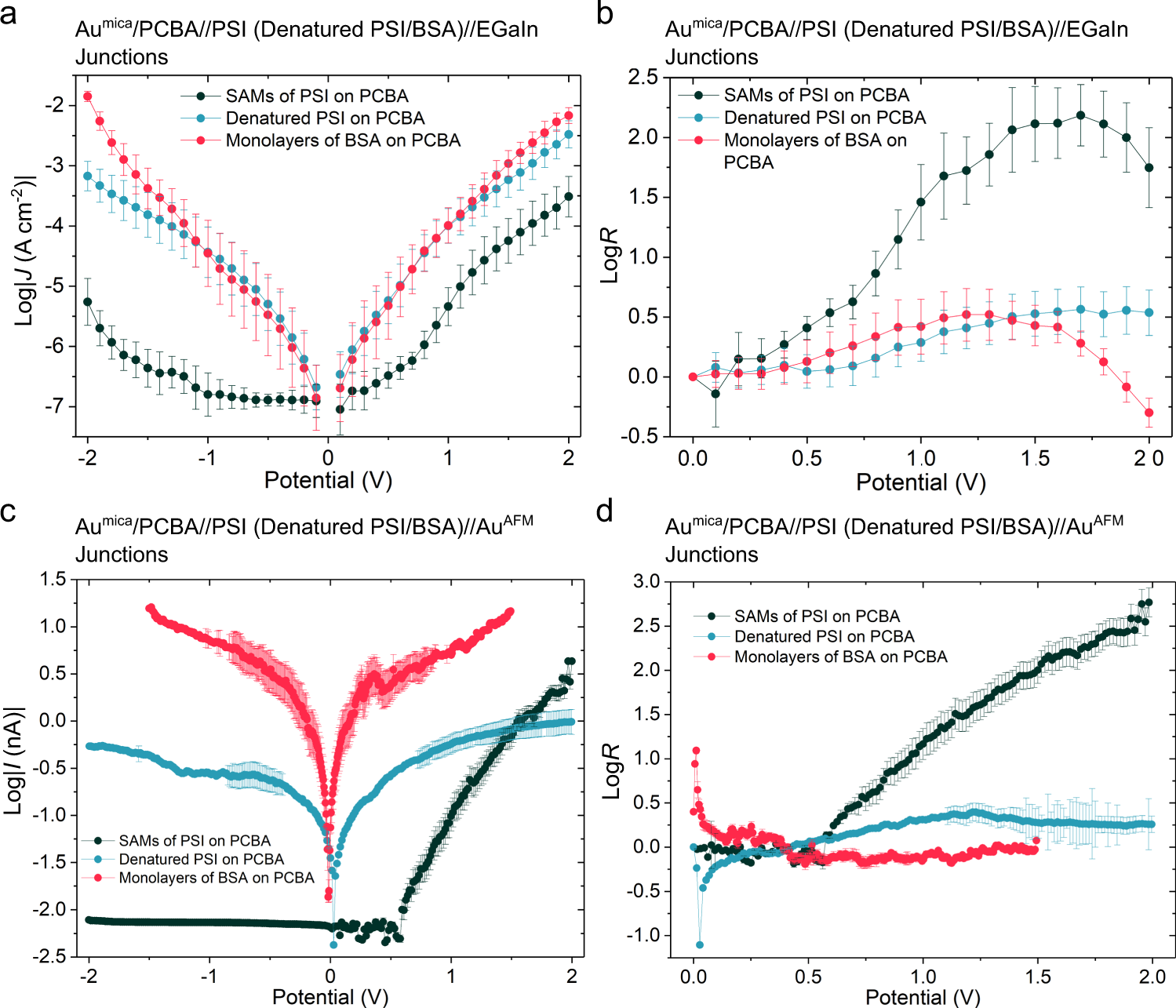

a Plots of log|J| versus potential of Aumica/PCBA//PSI (denatured PSI or BSA)//EGaIn junctions. b Plots of logR versus potential of Aumica/PCBA//PSI (denatured PSI or BSA)//EGaIn junctions. c Plots of I versus potential of Aumica/PCBA//PSI (denatured PSI or BSA)//AuAFM junctions. d Plots of logR versus potential of Aumica/PCBA//PSI (denatured PSI or BSA)//AuAFM junctions. Error bars represent 95% confidence intervals.
