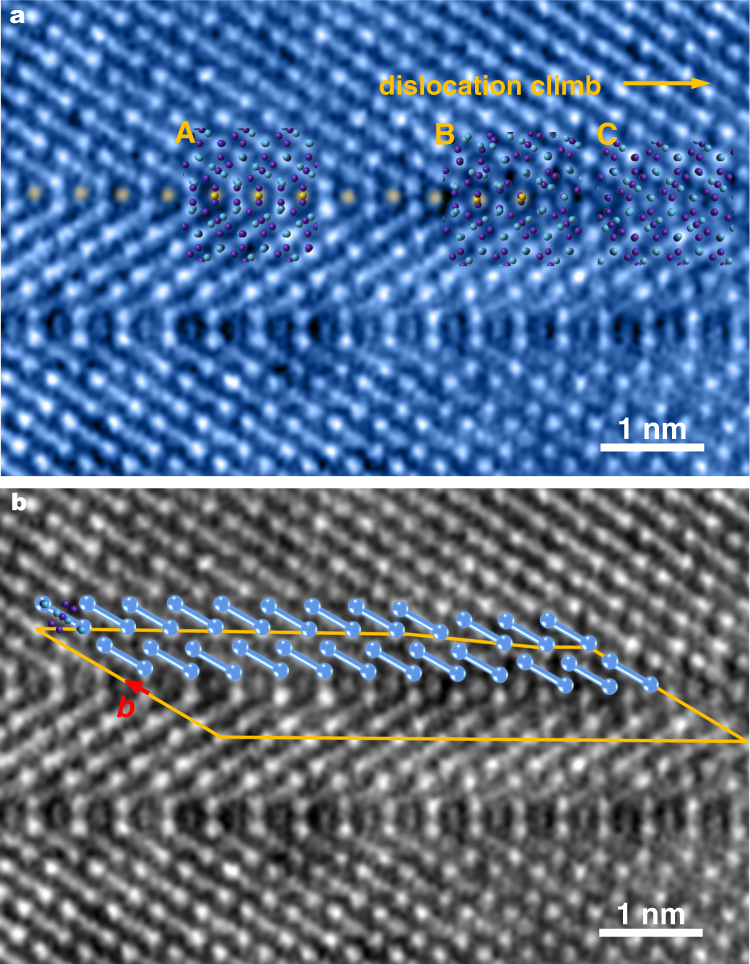

Fig. 3: The HAADF image projection along [1-11]μ showing the transformation from (110) FTB of μ phase to P (or σ) phase in progress.
a is lightly colored to enhance brightness and contrast. The positions of the diffusing-in atoms during phase transformation are colored orange. Boxes A–C in (a) correspond to the three sequential stages that catch the phase transformation in progress; At location A, the transformation to the partial structure of P (or σ) phase is completed. Location B captures a snapshot of the core of the climbing dislocation, i.e., the boundary zone between A and C (the original (110) FTB of the μ phase). The orange arrow marks the direction of both the dislocation climb and the progressive phase transformation. The purple and blue atoms represent (Co, Cr, Ni) and (W, Mo, Re), respectively. b illustrates the Burgers vector circuit of the climbing dislocation. The dumb-bell symbol represents a structure unit containing the atoms in seven nonequivalent (110) layers of the μ phase. The orange Burgers circuit fails to close (compare with the closed Burgers circuit of FTB in Supplementary Fig. 9a), and the red arrow shows the Burgers vector that can be decomposed into a horizontal and vertical component, and they are consistent with b∥ and b⊥ in Fig. 2.
