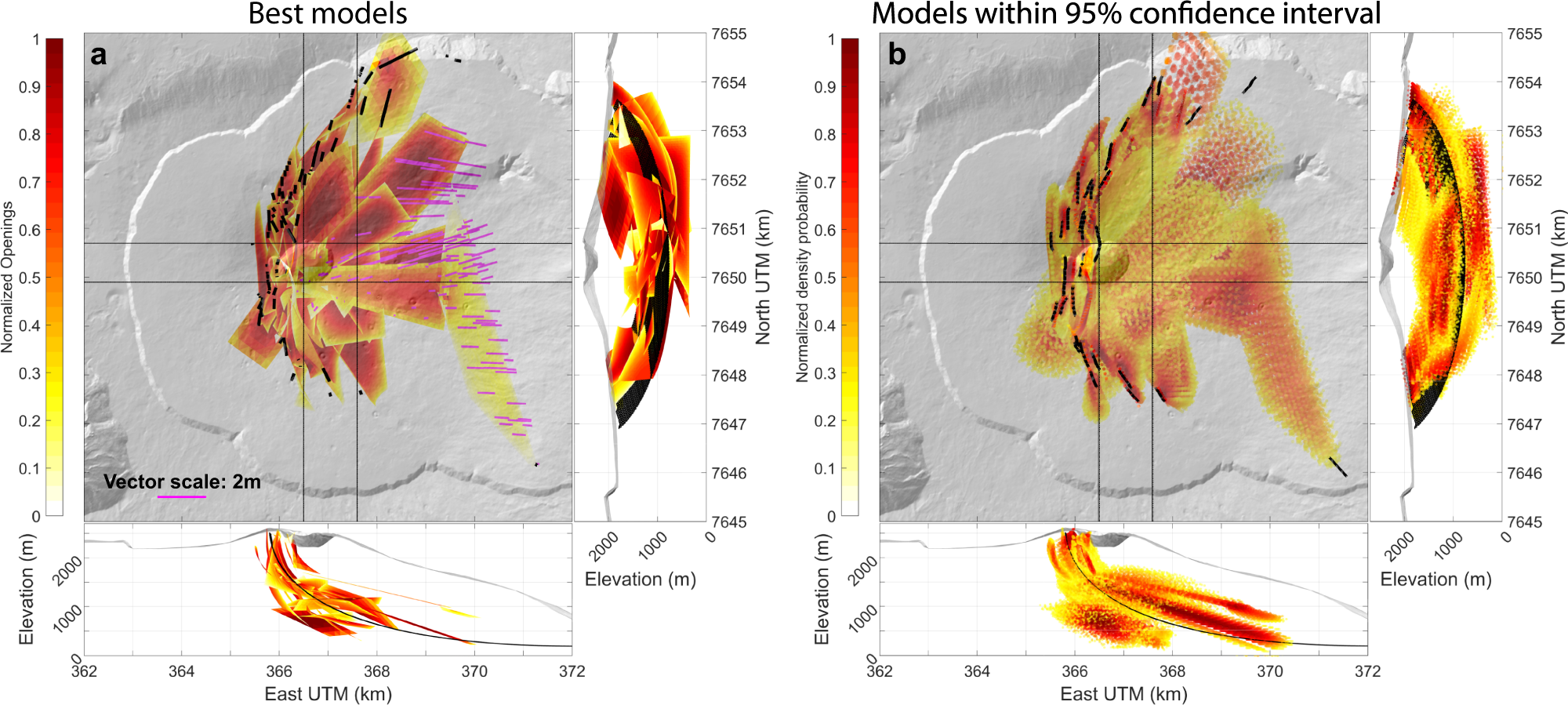

Fig. 5: 3D geometry of the main NE-SE preferential intrusion zone.
From: 22 years of satellite imagery reveal a major destabilization structure at Piton de la Fournaise
a Best-fit models for the 29 intrusions emplaced in the major NE-SE and sill intrusion zones. The colors show the opening of the modeled intrusions (normalized for clarity of the representation). Magenta vectors indicate displacement of the sheared sills. b Spread of models within their 95% confidence interval. Colorscale shows the normalized density of points for each model (point densities under 0.2 are not shown for visibility). For (a) and (b), thin straight lines on the map views delineate the width of the slice shown in the adjacent cross-sections. The thin black curve shown in the cross-sections highlights the surface determined by polynomial regression of the models mesh points.
