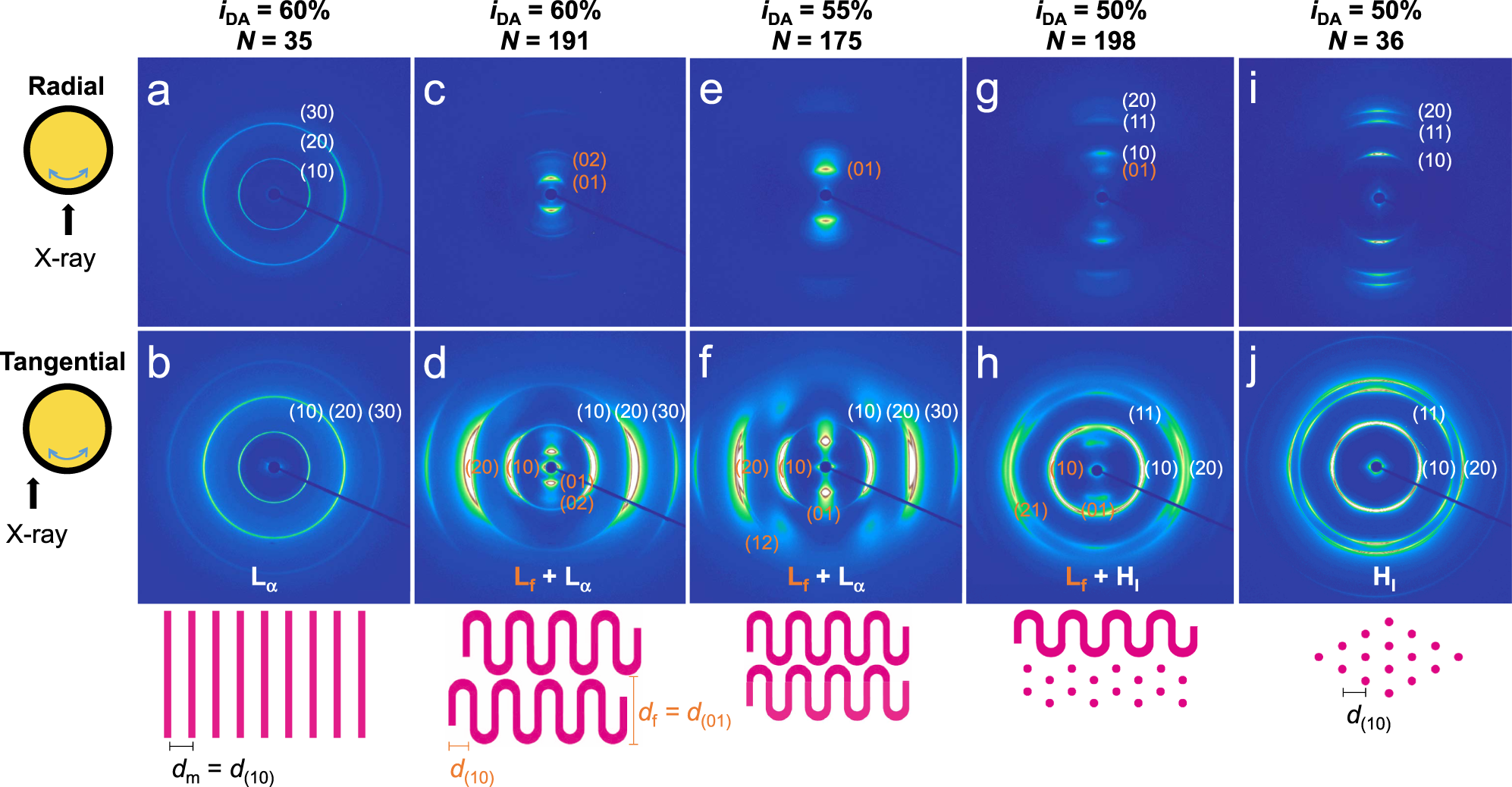

Fig. 3: 2D SAXS patterns of shear-aligned polymer solutions at 64 wt% concentration.
From: Bilayer-folded lamellar mesophase induced by random polymer sequence
Scatterings obtained along the radial (a, c, e, g, i) and tangential (b, d, f, h, j) directions are shown. iDA and N values are indicated on top. Interpretation of the scattering patterns in real space is schematically given on the bottom, showing the hydrophobic domains in pink.
