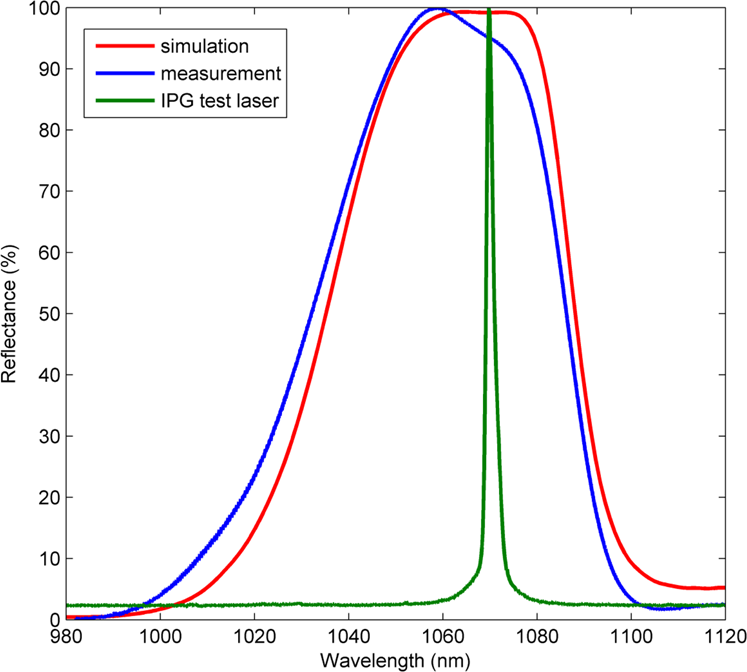

Fig. 7: Reflection spectrum of the diamond mirror used for LIDT measurements at 1070 nm.

From: Diamond mirrors for high-power continuous-wave lasers

Fig. 7: Reflection spectrum of the diamond mirror used for LIDT measurements at 1070 nm.

A diamond mirror measured (blue curve) and simulated (red curve) reflection spectrum at normal incidence. Green curve shows the spectrum of the 10 kW IPG laser used during damage testing plotted in arbitrary units.
