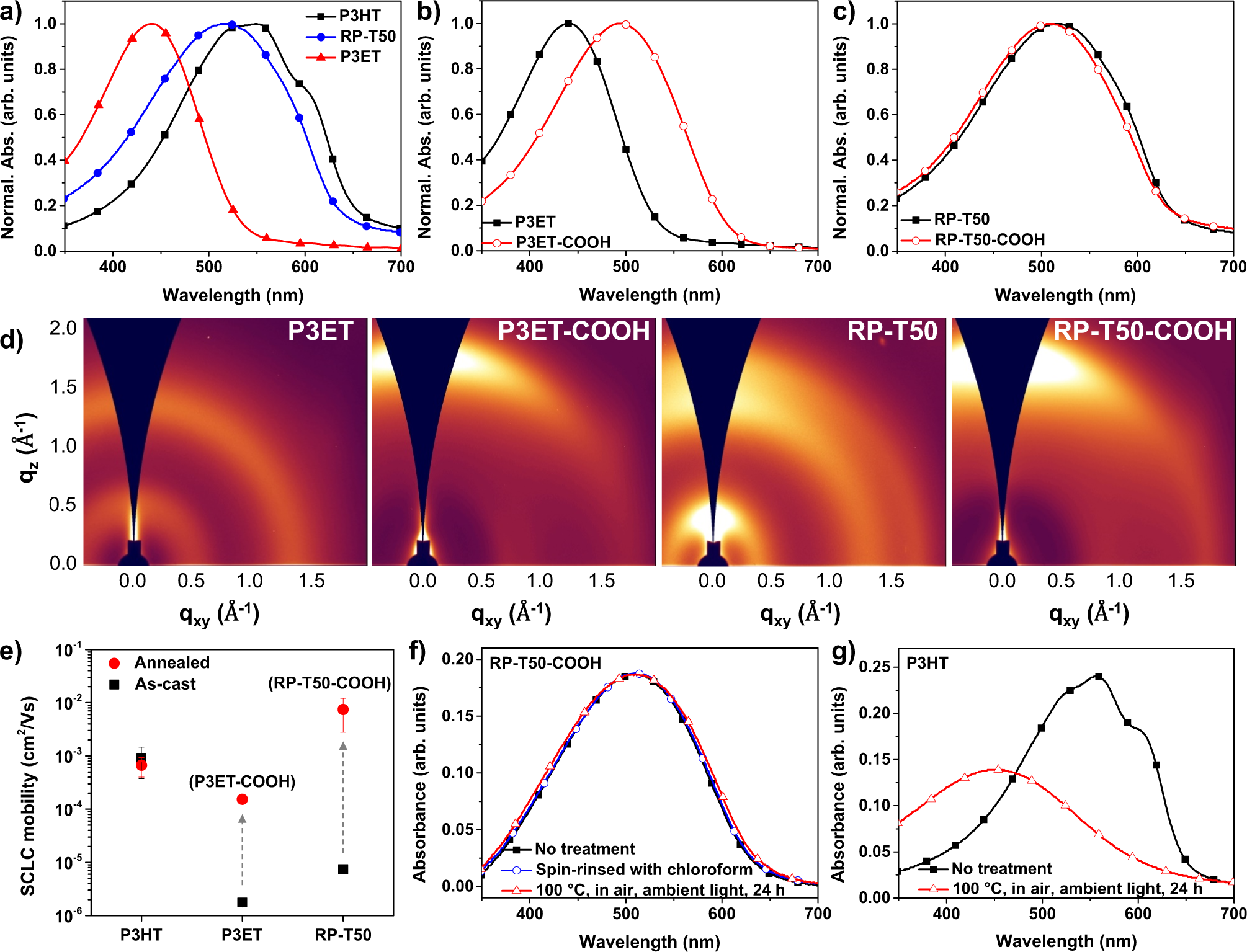

Fig. 2: Optical properties, microstructures, SCLC mobility and stability test.

From: Integrating charge mobility, stability and stretchability within conjugated polymer films for stretchable multifunctional sensors

Fig. 2

a Normalized UV–vis absorption spectra of as-cast P3HT, RP-T50 and P3ET films. Normalized UV–vis absorption spectra of P3ET and P3ET–COOH films (b) and RP-T50 and RP–T50–COOH films (c). d GIWAXS patterns of P3ET, P3ET–COOH, RP-T50 and RP–T50–COOH films. e SCLC mobilities of P3HT, RP-T50, and P3ET before and after annealing at 150 °C for 12 h. Error bars represent ± s.d. (n = 2–4). f UV–vis absorption spectra of RP–T50–COOH before and after stability test (spin-rinsed with chloroform only or heated at 100 °C, in air and under continuous ambient light for 24 h after spin-rinsed with chloroform). g UV–vis absorption spectra of P3HT before and after stability test (heated at 100 °C, in air and under continuous ambient light for 24 h).
