Fig. 4: Stretchability of the wrinkled polymer thin film.

From: Integrating charge mobility, stability and stretchability within conjugated polymer films for stretchable multifunctional sensors

Fig. 4

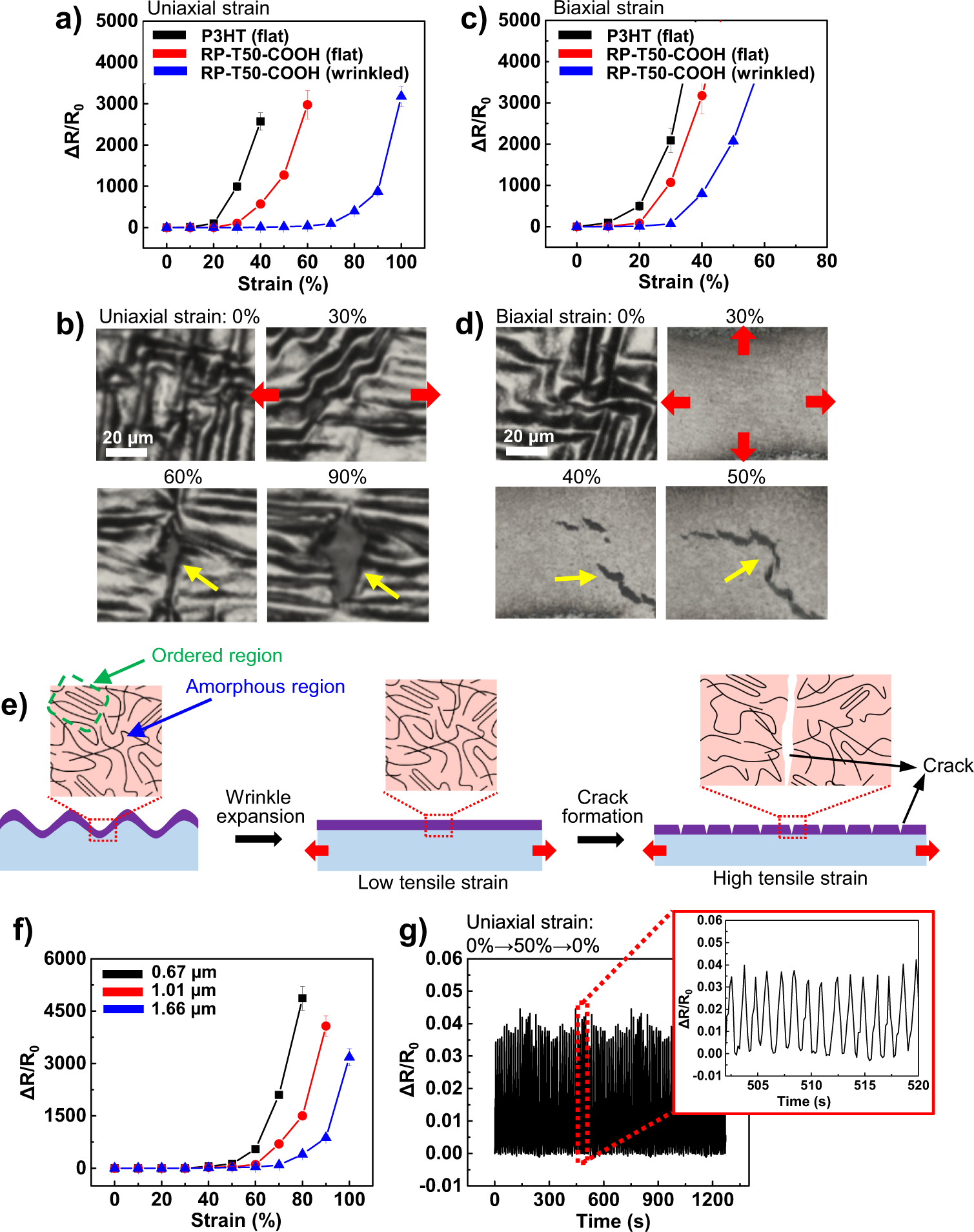

Electrical resistance changes under uniaxial strain (a) and biaxial strain (c). Sequential optical microscope images of the wrinkle deformation with uniaxial strain (b) and biaxial strain (d) using wrinkled RP-T50-COOH samples. Yellow arrows indicate crack formation. e Schematic illustration of the deforming and crack formation mechanism in the wrinkled RP-T50-COOH film under uniaxial strain. f Resistance change versus tensile strain depending on the average wavelength of wrinkles using wrinkled RP-T50-COOH film. g Uniaxial cyclic test to confirm the mechanical robustness for wrinkled RP-T5-COOH film. Inset: the magnified view of the graph. Error bars in a, c and f represent mean ± s.d., with n = 3.
