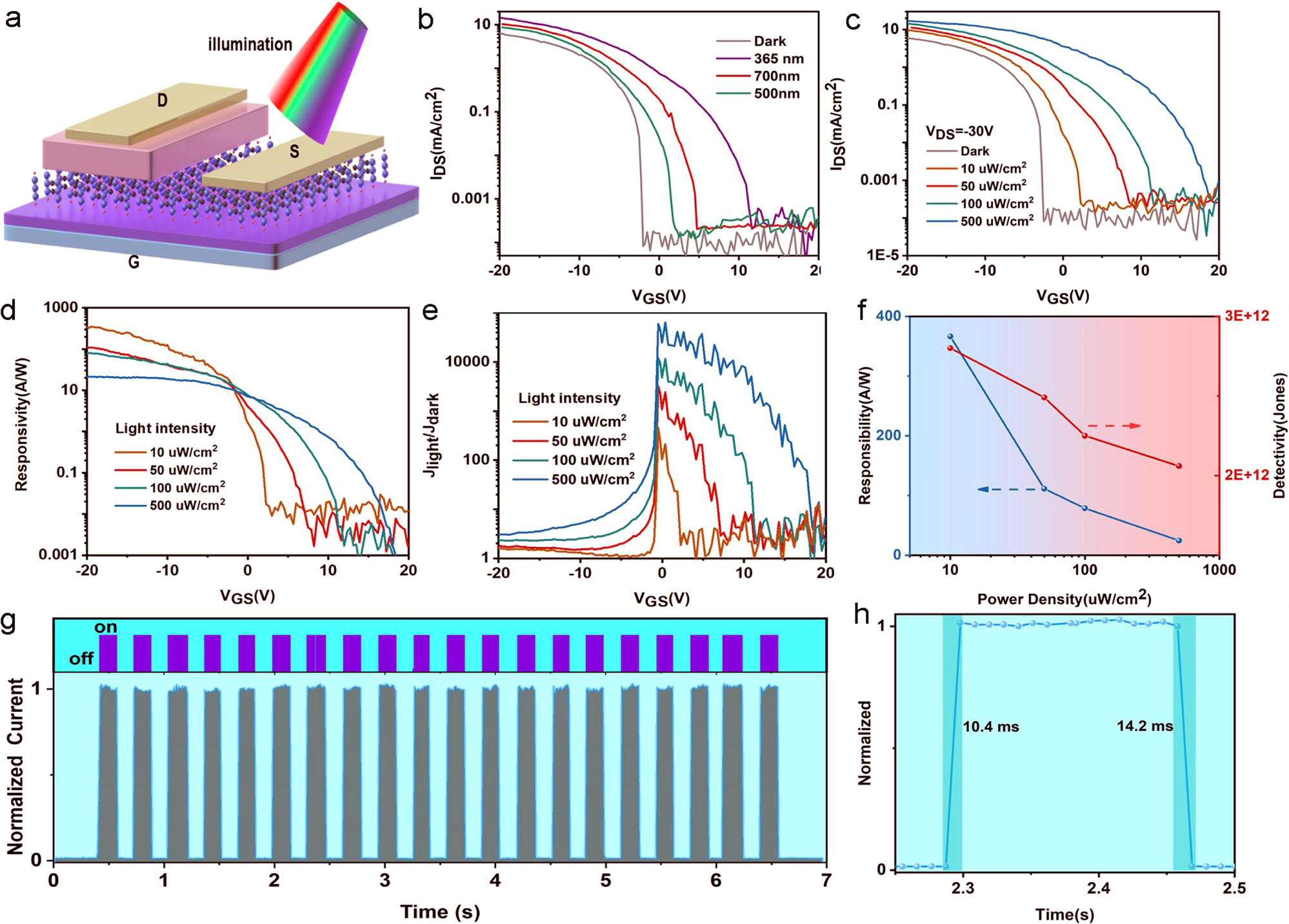

Fig. 5: The optoelectronic performance of MVOFET.
From: MXene based saturation organic vertical photoelectric transistors with low subthreshold swing
a The schematic of MVOFET under illumination. b Transfer curves of MVOFET under dark and different wavelength incident light. c The transfer curves measured at different light intensity under 365 nm. d, e Responsivity and Photosensitivity as a function of gate voltage under different light intensity measured at 365 nm, respectively. f Responsivity and specific Detectivity under different light intensity at 365 nm. g The real-time UV light response cycle test measured at VGS = 10 V and VDS = −20 V. h A single light response under 365 nm, exhibiting a fast rising and falling time of 10.4 and 14.2 ms, respectively.
