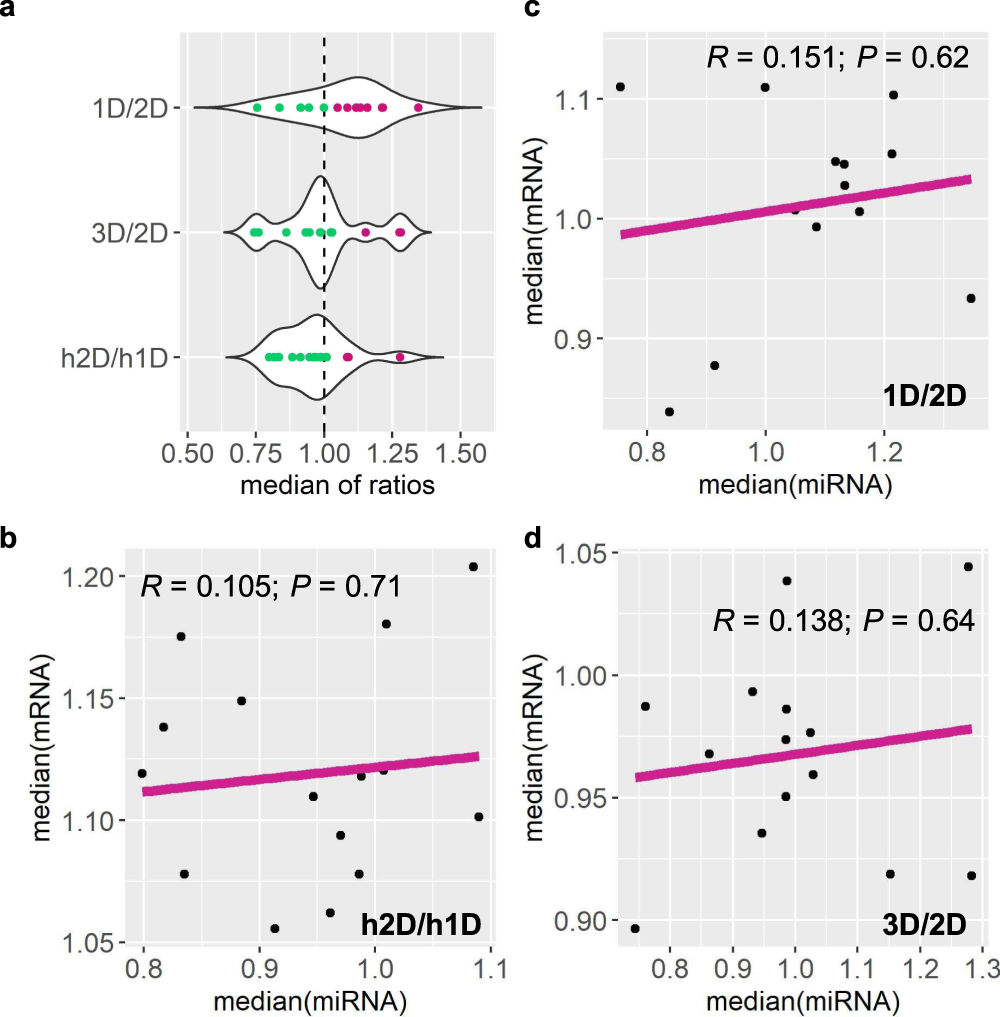

Fig. 1: Relationship between expression of trans genes and trans MIRNAs in each distal aneuploidy comparison.
From: Dosage-sensitive miRNAs trigger modulation of gene expression during genomic imbalance in maize
Each data point represents one comparison out of all distal aneuploids assayed. Medians of trans miRNA ratios were computed as in Supplementary Data 5. a Medians of trans miRNA ratios. The x-axis refers to the median of trans miRNA ratios, while the y-axis represents the chromosomal dosage in each comparison. Data points that belong to two clusters produced by the k-means clustering algorithm were painted in different colors. b–d Medians of ratios of trans miRNAs and trans genes in each comparison were plotted on the x- and y-axes, respectively. Medians of trans gene ratios were computed in previous studies34,35. R Pearson correlation coefficient; P P value for Pearson correlation (two-sided; confidence intervals, 95%; no adjustment made for multiple comparisons). Data points with x- and y-axis values exceeding two SDs from the mean are considered outliers, and thus are excluded from the analysis. Source data are provided as a Source Data file.
