Fig. 3: Lateral displacement Δl as functions of r and We at different temperatures.

From: Steerable drops on heated concentric microgroove arrays

Fig. 3: Lateral displacement Δl as functions of r and We at different temperatures.The alternative text for this image may have been generated using AI.

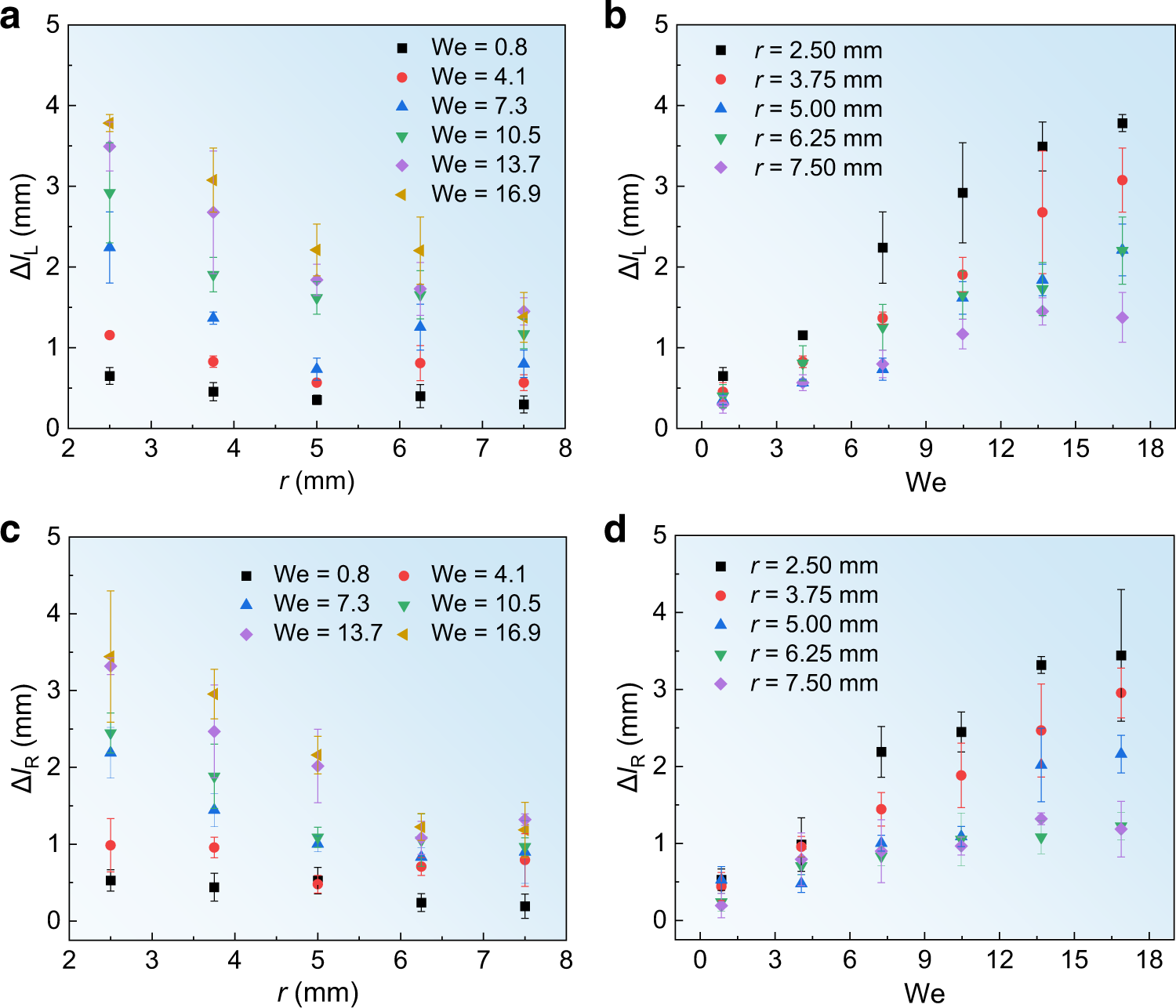

a, b Variation of ΔlL at T = 250 °C as a function of r under various We and as a function of We for various r, respectively. c, d Variation of ΔlR at T = 350 °C as a function of r under various We and as a function of We for various r, respectively. The error bars of the data in a–d denote the standard deviation of three measurements. Source data are provided as a Source Data file.
