Fig. 2: The 16S rRNA microbiomes of the bulk soils, modern and wild tomatoes, and RIL population. | Nature Communications

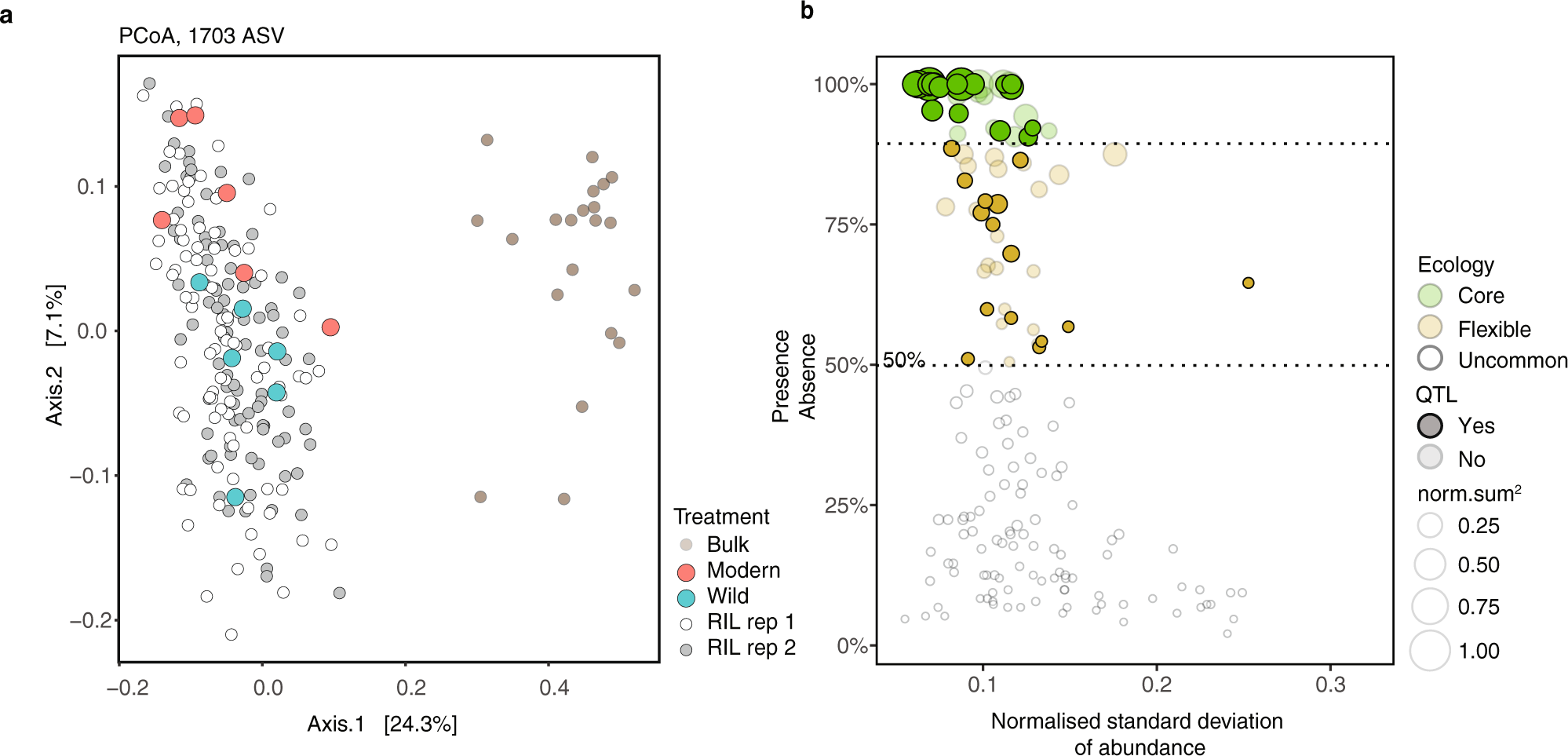

Fig. 2: The 16S rRNA microbiomes of the bulk soils, modern and wild tomatoes, and RIL population.

From: Disentangling the genetic basis of rhizosphere microbiome assembly in tomato

Fig. 2

a A PCoA analysis of ASVs demonstrating a separation between the bulk soil and rhizosphere microbiomes. The rhizosphere of RIL accessions distribute around the wild and modern rhizospheres. Separation between the two replicate RIL populations was not observed. b To limit multiple testing, a QTL analysis was conducted only on ASV that were observed in over 50% of accessions. The 33 ASV that are subsequently found with QTLs are shown with full opacity. All other ASV are partially transparent. Source data are provided as a Source Data file.
