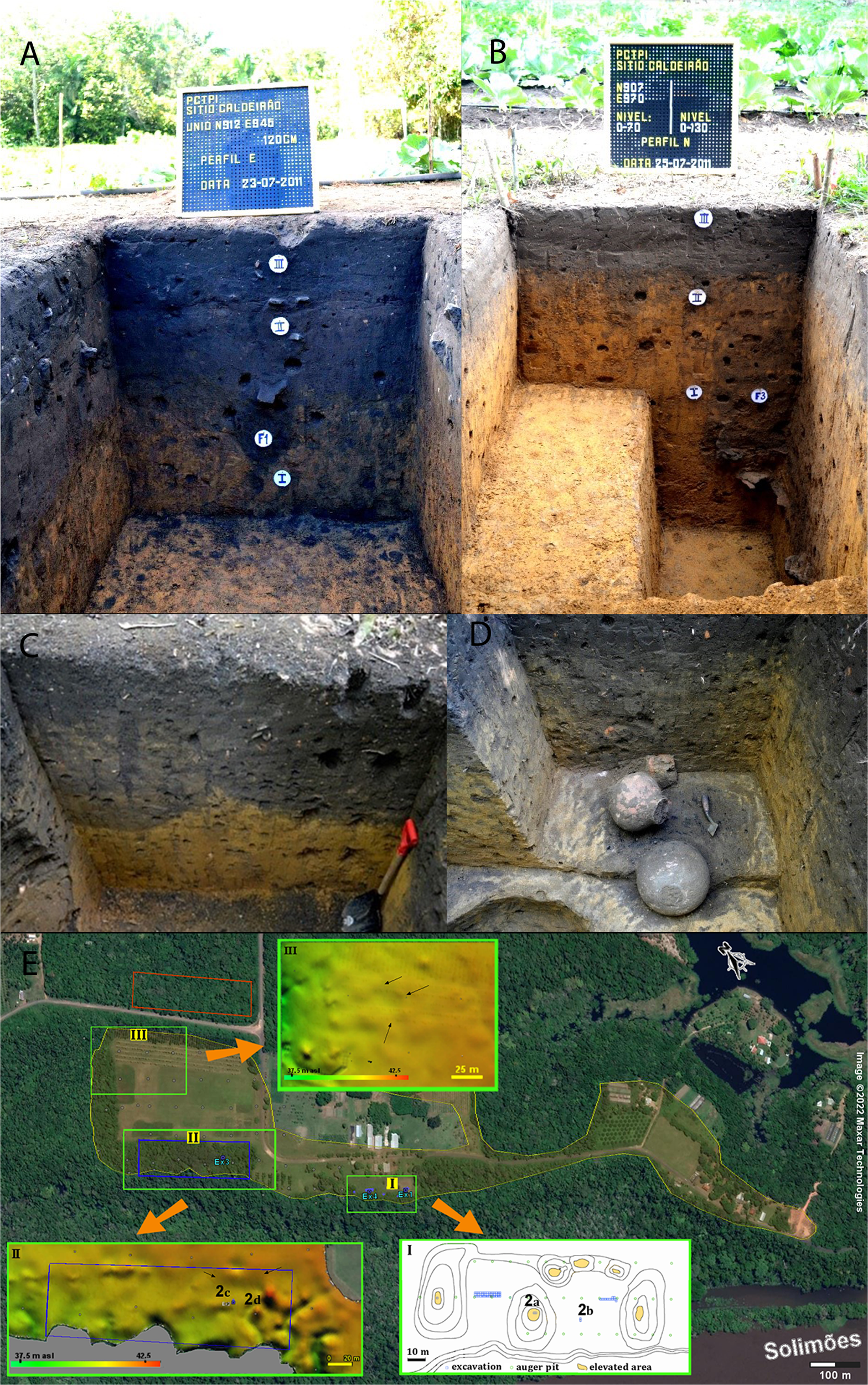

Fig. 2: Archaeological fieldwork—excavations and mapping—carried out at the Caldeirão site in 2011.
From: Evidence confirms an anthropic origin of Amazonian Dark Earths
A, B, C, and D Vertical profiles exposed by multiple archaeological excavations at the Caldeirão ADE. E Google Earth image of the Caldeirão ADE (see location of profiles A–D within insets I and II). 2a and 2b are ~25 m apart and show the stratigraphy of archaeological deposits in mound (2a) and flat (2b) areas. 2c and 2d are ~12 m apart and show the stratigraphy of archaeological deposits at an Embrapa reference profile (C) and nearby archaeological excavation (D). Note clearly defined archaeological matrix features infilled with ADE sediment (C), and infilled pit feature with well-preserved ceramic vessels, suggesting intentional deposition by ancient indigenous Amazonians (D). E Yellow shaded area shows the spatial distribution of mounds and archaeological pottery ascertained through archaeological survey and excavation. Insets I, II, II show details of the topography and/or archaeological excavations, as well as sampling location for profiles depicted in (A–D). Inset II: Note the close proximity between identified mounded areas (black arrows), archaeological excavations, and the area of the ADE sampled by Silva5 (blue rectangle). Inset III: Survey has also identified mounded areas (black arrows) near the area Silva et al.5 sampled for Ultisols (red rectangle).
