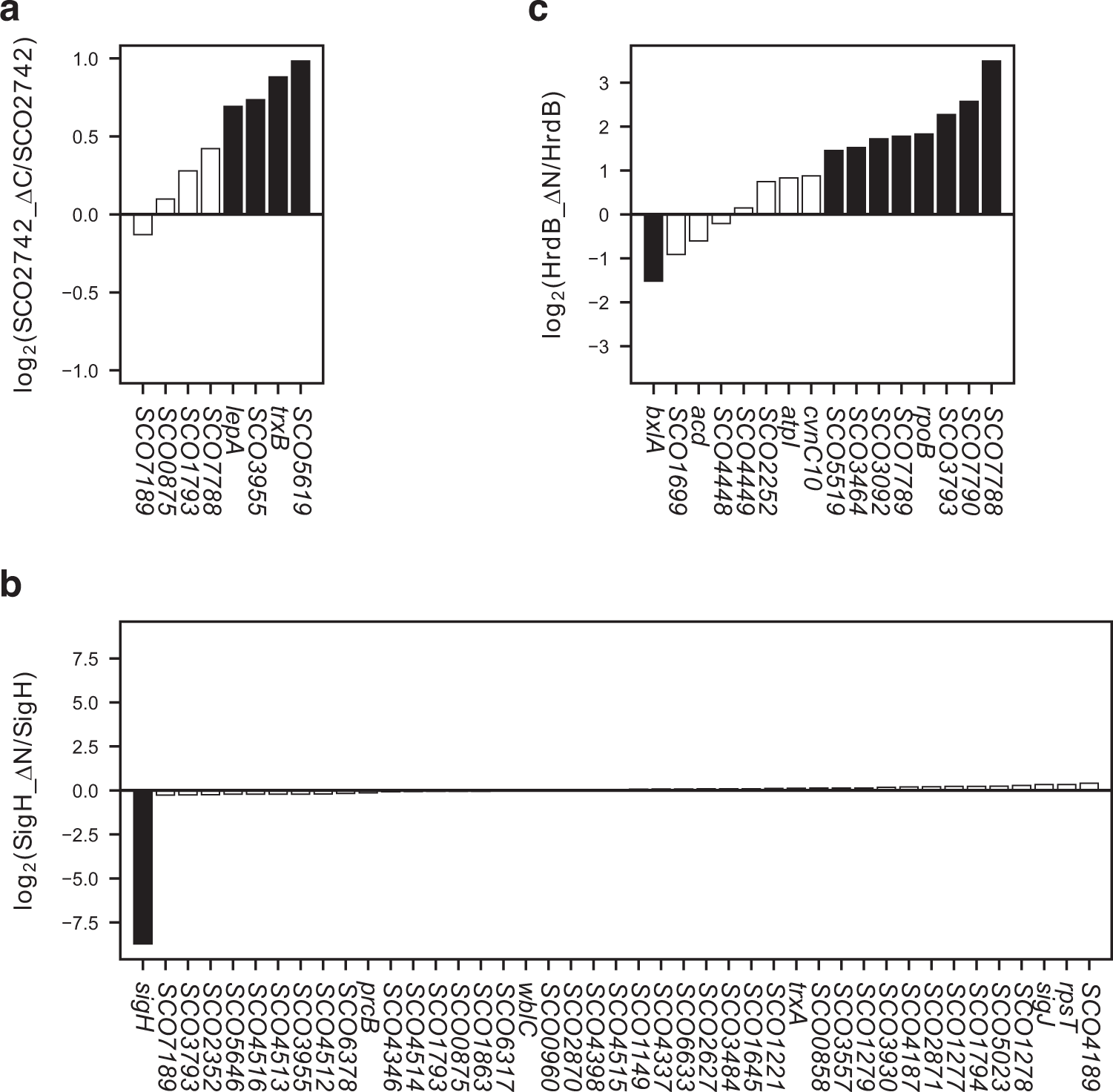

Fig. 3: Relative transcript abundances generated by the truncated and full-length sigma factors.
From: RIViT-seq enables systematic identification of regulons of transcriptional machineries
Y axis indicates the relative abundance of the transcripts generated by the truncated sigma factor compared to the transcript abundance generated by the full-length form of the sigma factor. a Relative transcript abundances of the target genes of SCO2742. b Relative transcript abundances of the target genes of SigH. c Relative transcript abundances of the target genes of HrdB. Filled bars, adjusted P value < 0.01; open bars, adjusted P value ≥ 0.01. Fold changes and adjusted P values were determined by using the DESeq2 package.
