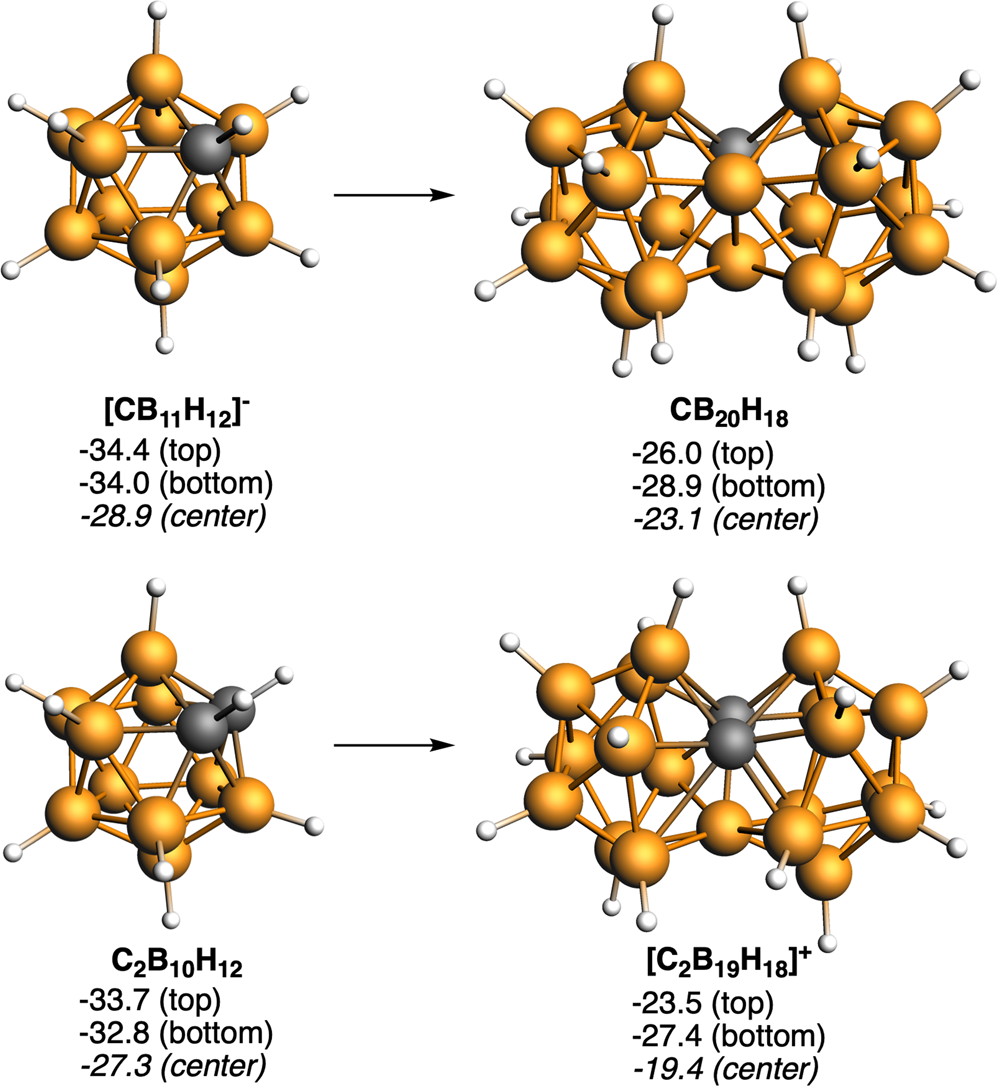

Fig. 3: 3D/3D systems formed from [CB11H12]− and C2B10H12.
From: 3D and 2D aromatic units behave like oil and water in the case of benzocarborane derivatives
Computed NICS (in ppm) at the center of different five-membered rings and at the center of each cluster are enclosed. Boron atoms in orange, C atoms in gray, and H atoms in white.
