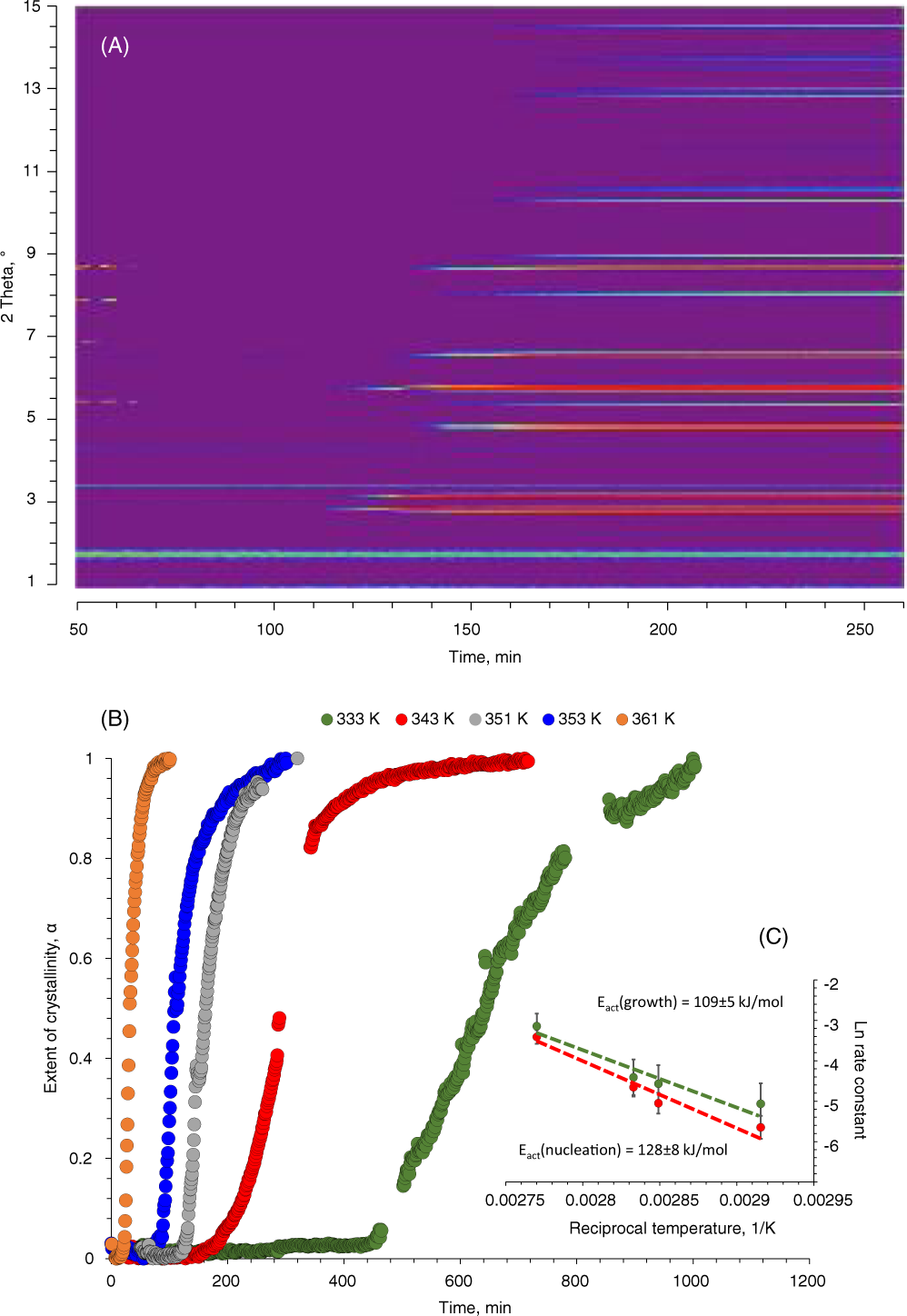

Fig. 4: Time-resolved X-ray diffraction data.
From: Unraveling the molecular mechanism of MIL-53(Al) crystallization
(A) Time-resolved counterplots of XRD data recorded during the synthesis of MIL-53 at 351 K; (B) the excess of MIL-53 crystallinity obtained from the background corrected XRD data together with the corresponding fits using Gualtieri model; (C) Arrhenius plots for kg and kn.
