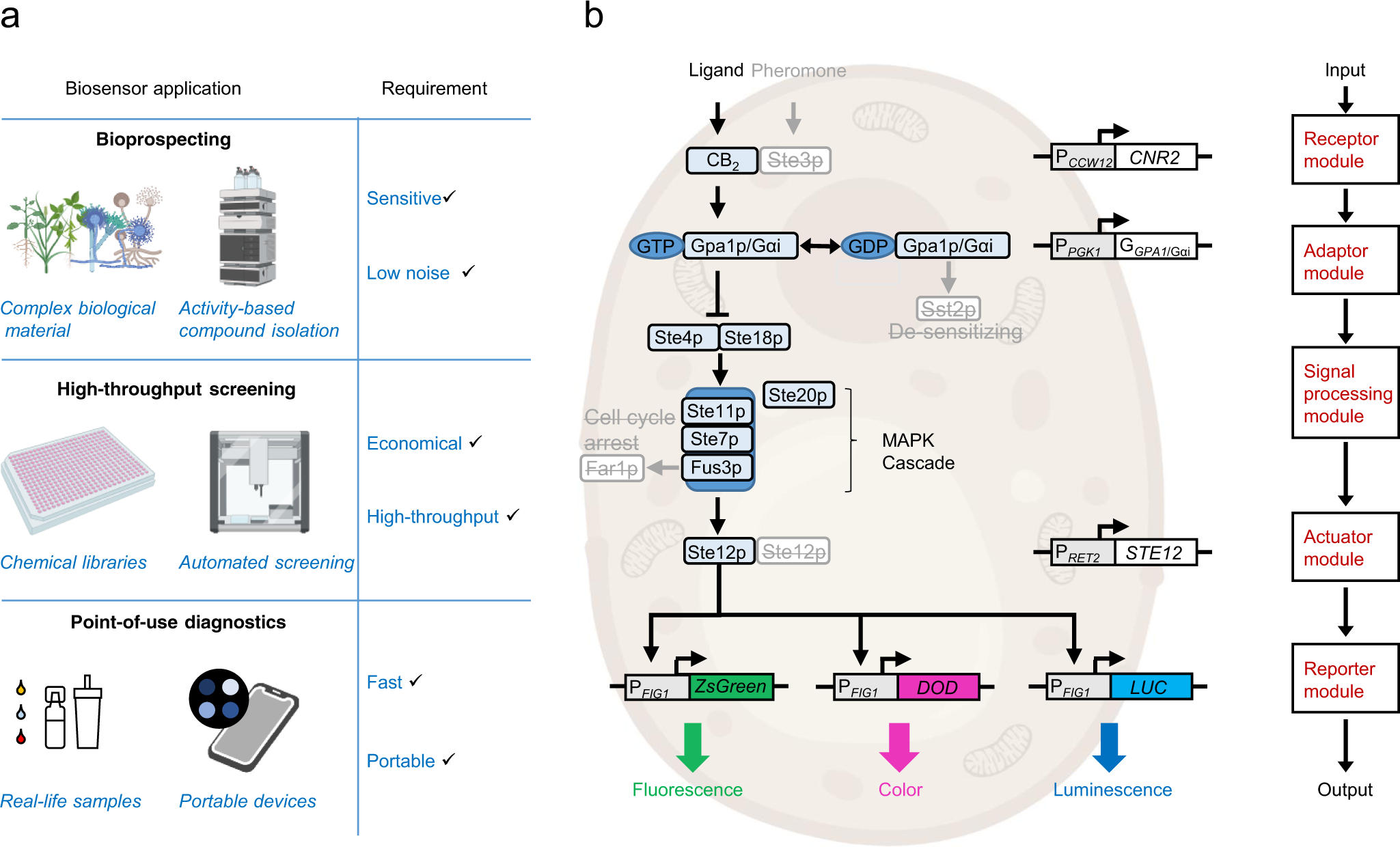

Fig. 1: The CB2 cannabinoid biosensor design.
a The biosensor was developed to enable diverse applications with different requirements. For example, bioprospecting of complex biological material requires the biosensor to be sensitive but with low background. This is because the bioactive compounds are often present in minute amounts among many other compounds potentially interfering with detection. On the other hand, screening of chemical libraries requires a biosensor that is robust, economical, and amenable to high-throughput workflow. For this, fast-growing and easy-to-prepare cells that can be handled with non-expensive material and equipment are desirable. In the case of a biosensor for point-of-use diagnostics outside the lab, this needs to be easy to use, fast, and operable by the equipment available to non-experts. b The cannabinoid biosensor is based on a modular design. Interchangeable parts can be introduced into the receptor, adaptor, actuator, or reporter modules (red), while the native yeast Gβ and Gγ subunits and the MAPK cascade are employed as a signal-processing module without further modification. The parts are integrated into a chassis strain KM111 where genes encoding the yeast pheromone pathway components to be replaced (pheromone receptor STE3, Gα subunit GPA1, and pheromone pathway master regulator STE12) have been removed (strikethrough) alongside with SST2 (which returns Gα to its inactive state) and FAR1 (which triggers cell-cycle arrest). This design enables the functional insertion of different GPCR receptors by pairing them with the corresponding Gpa1p/Gα chimera. According to the specific requirements of each application, the biosensor can be fitted with an optimal reporter construct including, for example, a fluorescence, color, or luminescence reporter.
