Fig. 3: Algorithmic details of weight programming optimisation.
From: Optimised weight programming for analogue memory-based deep neural networks

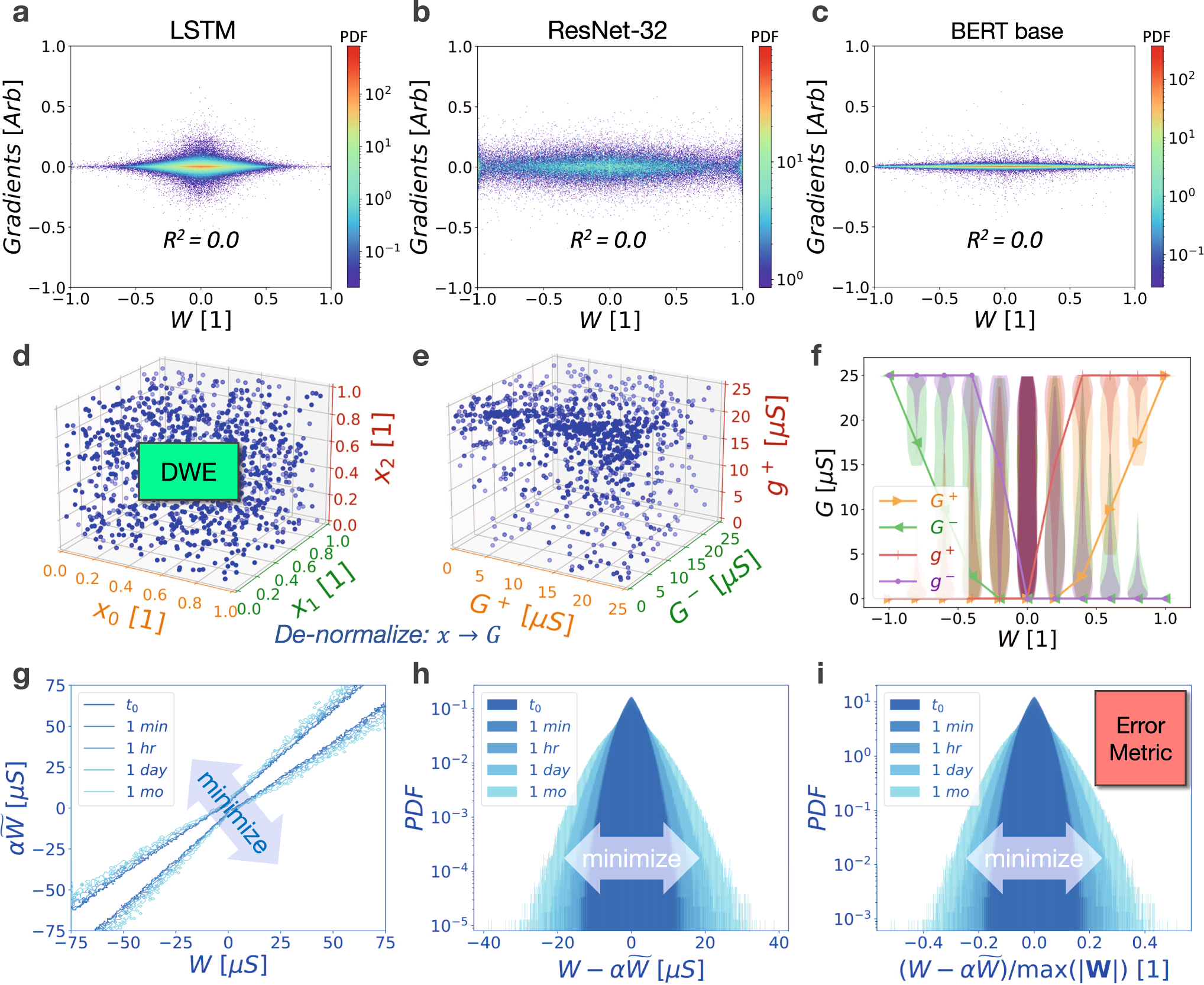

DNN gradients are uncorrelated with weight value as shown for (a) LSTM, (b) ResNet-32, and (c) BERT-base. This leads to a weight error importance κj, as defined in our error metric, which depends solely on weight density. The weight programming parameter space is then explored using (d) Differential Weight Evolution (DWE) on parameter vectors x within a \({\sim}4D+2\) dimensional hypercube, where D represents the number of positive discretised weights. e De-normalised hypercube parameters produce valid conductance combinations that capture optimisation constraints due to conductance inter-dependencies. f A two-dimensional projection of the weight programming strategies explored, including the optimal solution (solid lines). Background violin plots show coverage of the weight programming space explored and reveal underlying programming constraints. g Outlines of correlation distributions for drift compensated hardware weights \(\alpha \widetilde{W}\) versus ideal weights W showing an outward diffusion over time. h The corresponding probability density function of weight errors across all weight magnitudes, showing a similar outward diffusion with time. i The resulting normalised weight error distribution used to define the error metric.
