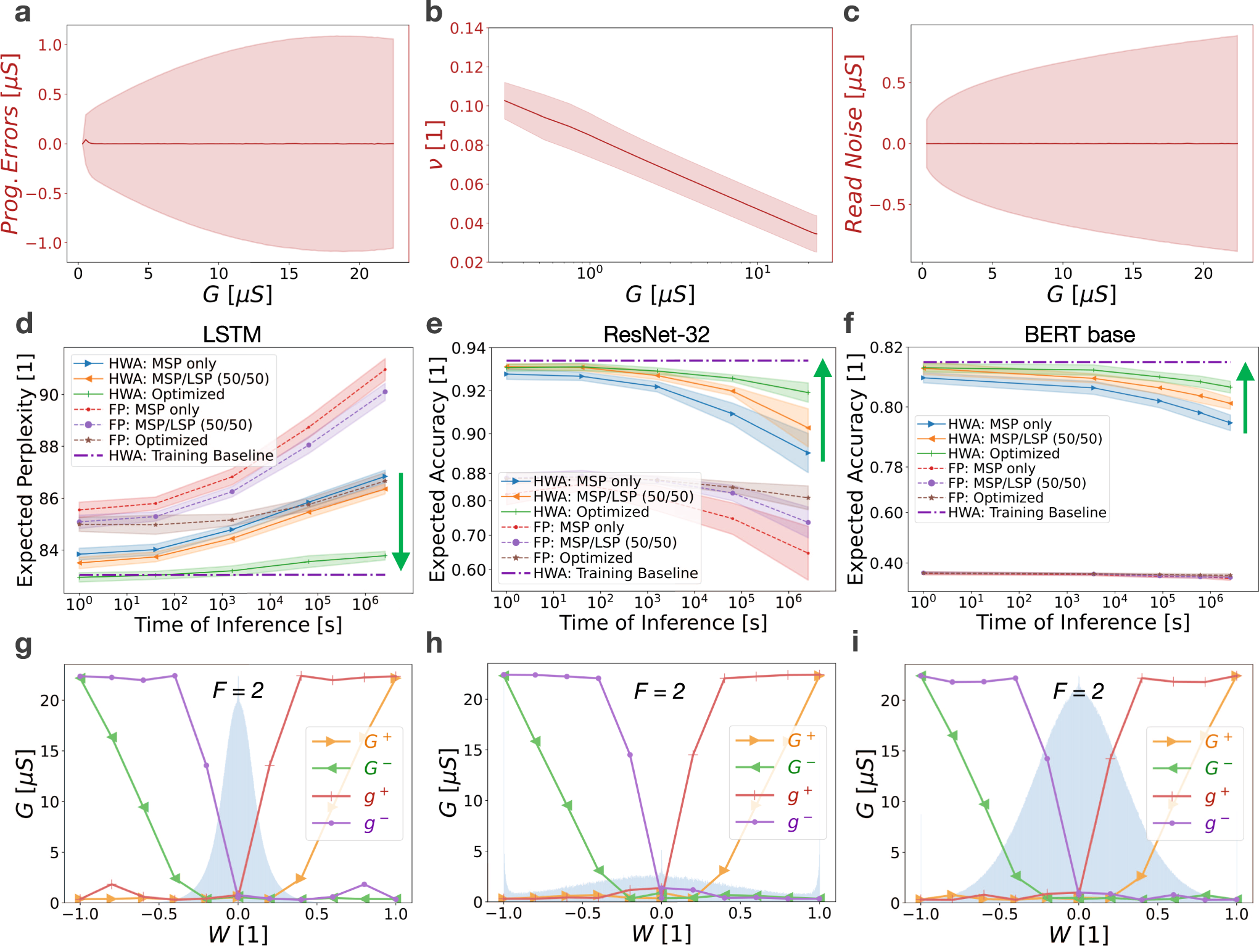

Fig. 4: Weight programming optimisation improves inference accuracy.
From: Optimised weight programming for analogue memory-based deep neural networks
Stochastic analogue memory device models, in this case derived from the measurement of mushroom-type phase-change memory (PCM) devices, for (a) conductance-dependent programming errors, (b) conductance-dependent drift coefficients, and (c) conductance-dependent read noise, with solid red lines representing the mean and shaded red regions representing plus-minus one standard deviation. Simulated inference results show the benefits of both hardware-aware (HWA) training22 and the weight programming optimisation process introduced in this paper, showing good generalisation across (d) a recurrent neural network such as a two-layer Long Short-Term (LSTM) network evaluated on the Penn Treebank dataset, (e) Convolutional Neural Networks such as ResNet-32 evaluated on the CIFAR-10 dataset, and (f) Transformer-based networks such as BERT-base, evaluated on the MNLI dataset. Average inference performance and plus-minus one standard deviation are denoted by lines and shaded regions, respectively. Target baselines (dash-dot purple) are computed using conventional (i.e., non-hardware-aware) training using 32-bit floating-point (FP) precision. g–i The corresponding optimised programming strategies (solid lines) and weight distributions (blue highlight) for each network. Inference simulation results are compiled from twenty-five independent inference accuracy simulations over time for various training and weight programming strategies. The optimal MSP/LSP significance factor F, also a parameter solved for in the weight programming optimisation process, was determined to be two in each scenario.
