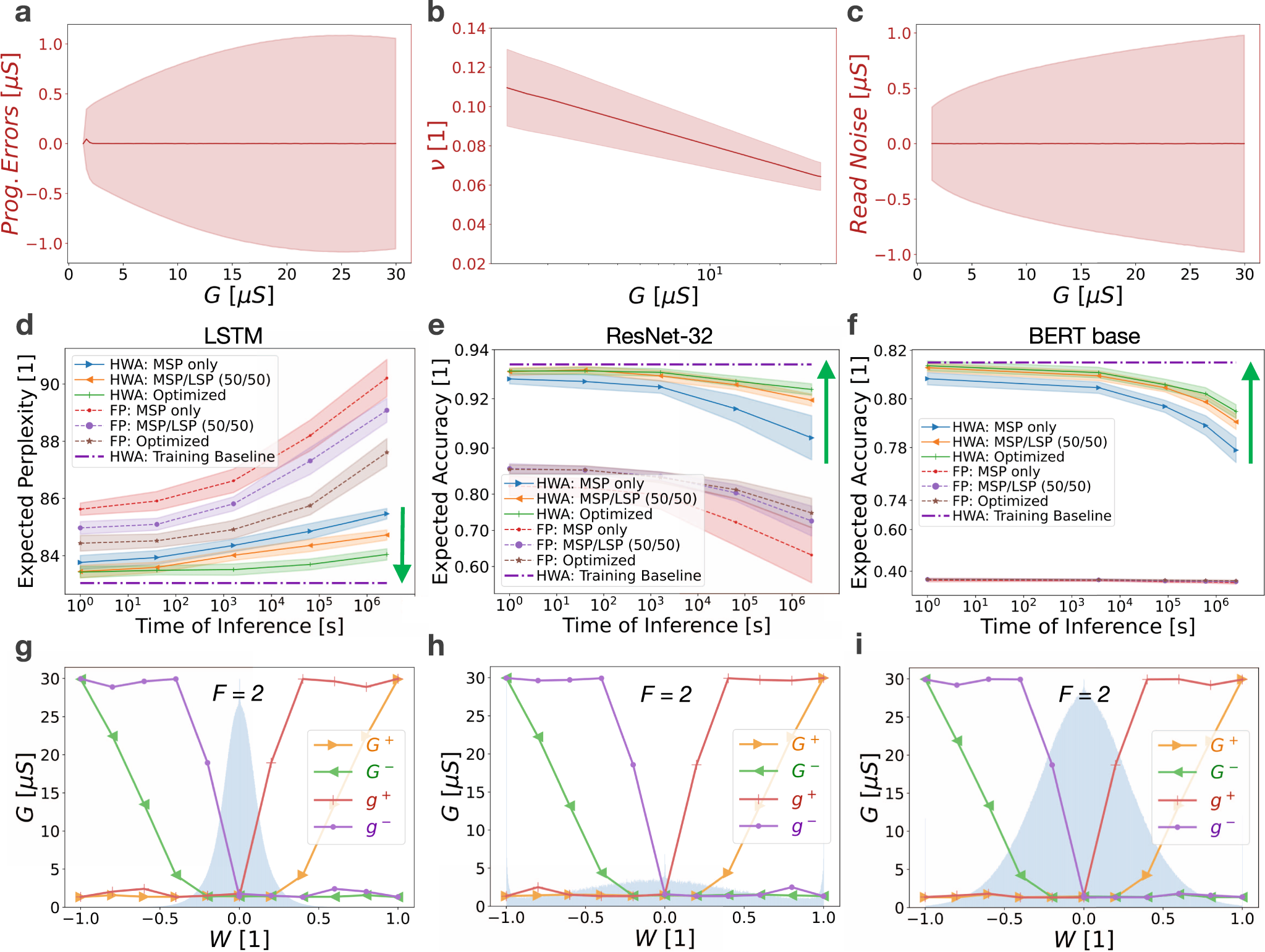

Fig. 5: Weight programming optimisation improves inference accuracy for a different set of device characteristics.
From: Optimised weight programming for analogue memory-based deep neural networks
An alternative device with different underlying stochastic analogue memory device models for (a) conductance-dependent programming errors, (b) conductance-dependent drift coefficients, and (c) conductance-dependent read noise, with solid red lines representing the mean and shaded red regions representing plus-minus one standard deviation. Simulated inference results still generalise well across (d) a two-layer Long Short-Term (LSTM) network evaluated on the Penn Treebank dataset, (e) ResNet-32 evaluated on the CIFAR-10 dataset, and (f) BERT-base evaluated on the MNLI dataset. Although this device exhibits better performance under naive programming strategies (compare orange curves in part (d) against Fig. 4d), the best-possible inference performance achievable with this device is worse than the device used for Fig. 4. Average inference performance and plus–minus one standard deviation are denoted by lines and shaded regions, respectively. g–i the corresponding optimised programming strategies for each network are similar to those in Fig. 4, with only subtle changes. Simulation results are compiled from twenty-five independent inference accuracy simulations over time for various training and weight programming strategies. The optimal MSP/LSP significance factor F was determined to be two in each scenario.
