Fig. 2: The change in pyramidalization observed for UN3 and US3 with pressure. | Nature Communications

Fig. 2: The change in pyramidalization observed for UN3 and US3 with pressure.

From: Contrasting behaviour under pressure reveals the reasons for pyramidalization in tris(amido)uranium(III) and tris(arylthiolate) uranium(III) molecules

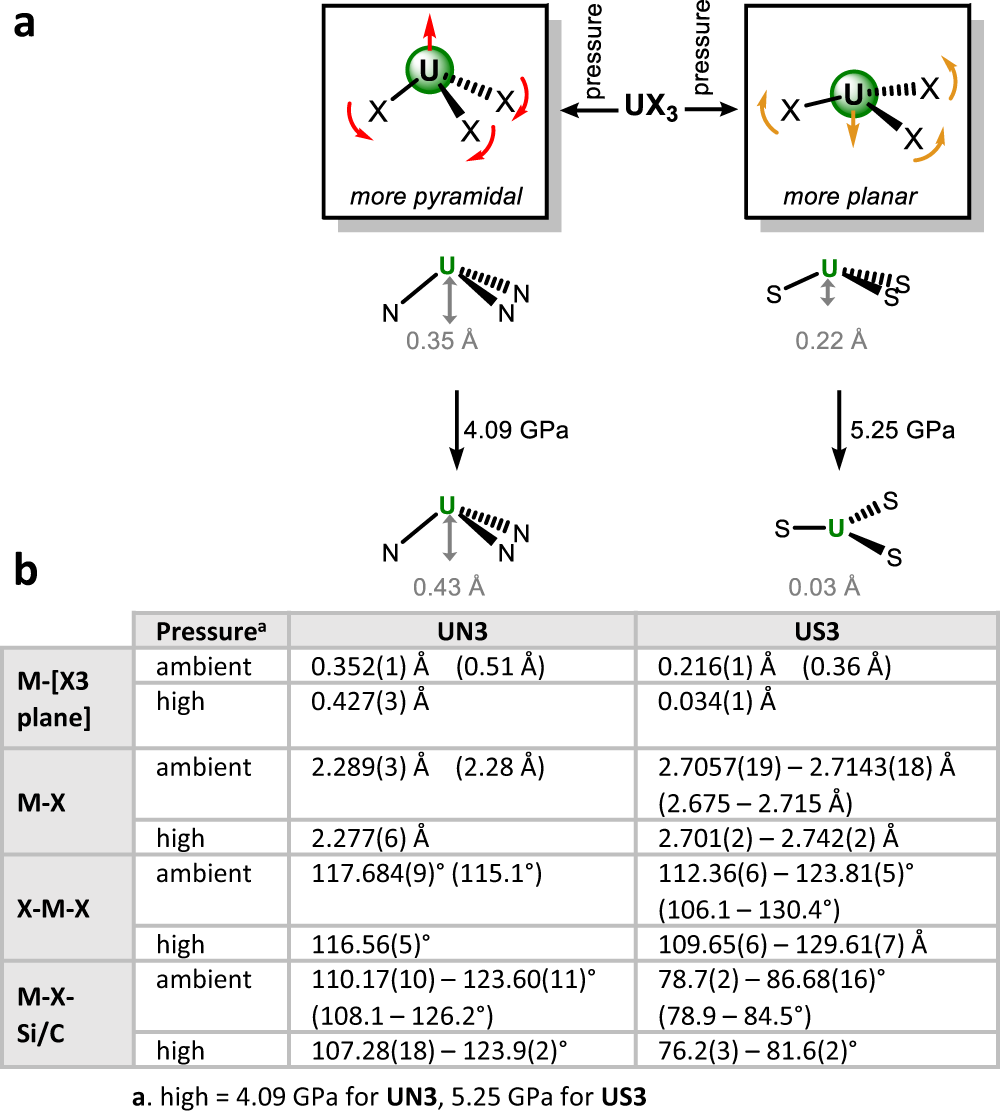

Fig. 2: The change in pyramidalization observed for UN3 and US3 with pressure.

a Increased pyramidalization of UN3 with pressure, and planarization of US3 with pressure. b Key distances and angles and their change with pressure for the two compounds, with computed values in brackets. UN3 = U(N(SiMe3)2)3 and US3 = U(SAr)3 where SAr = arylthiolate S-tBu3−2,4,6-C6H2.
