Fig. 5: Upscale from pore-scale features to macroscopic transport.
From: Structure induced laminar vortices control anomalous dispersion in porous media

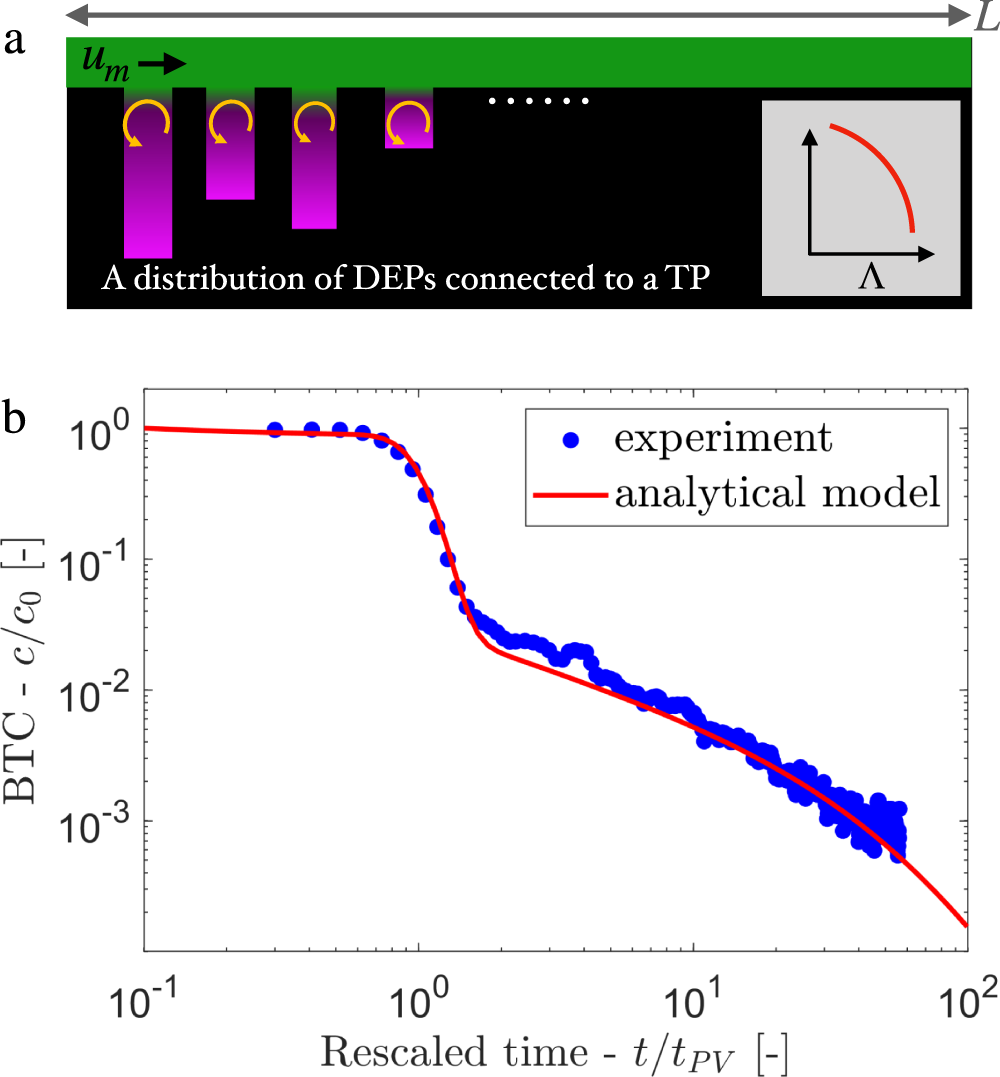

a Schematic representation of a one-dimensional analytical model described by a straight TP connected to a collection of DEPs via Eq. (3); the distribution of DEP-size is parameterized by the PDF of aspect ratio (Λ), and their number density by the parameter α. b Comparison of the analytical prediction (solid line) from Eq. (3) of the BTC with the experimental data (dots).
