Fig. 2: Thy1+ basal epidermal keratinocytes display self-renewal capacity.

From: Thy1 marks a distinct population of slow-cycling stem cells in the mouse epidermis

Fig. 2: Thy1+ basal epidermal keratinocytes display self-renewal capacity.The alternative text for this image may have been generated using AI.

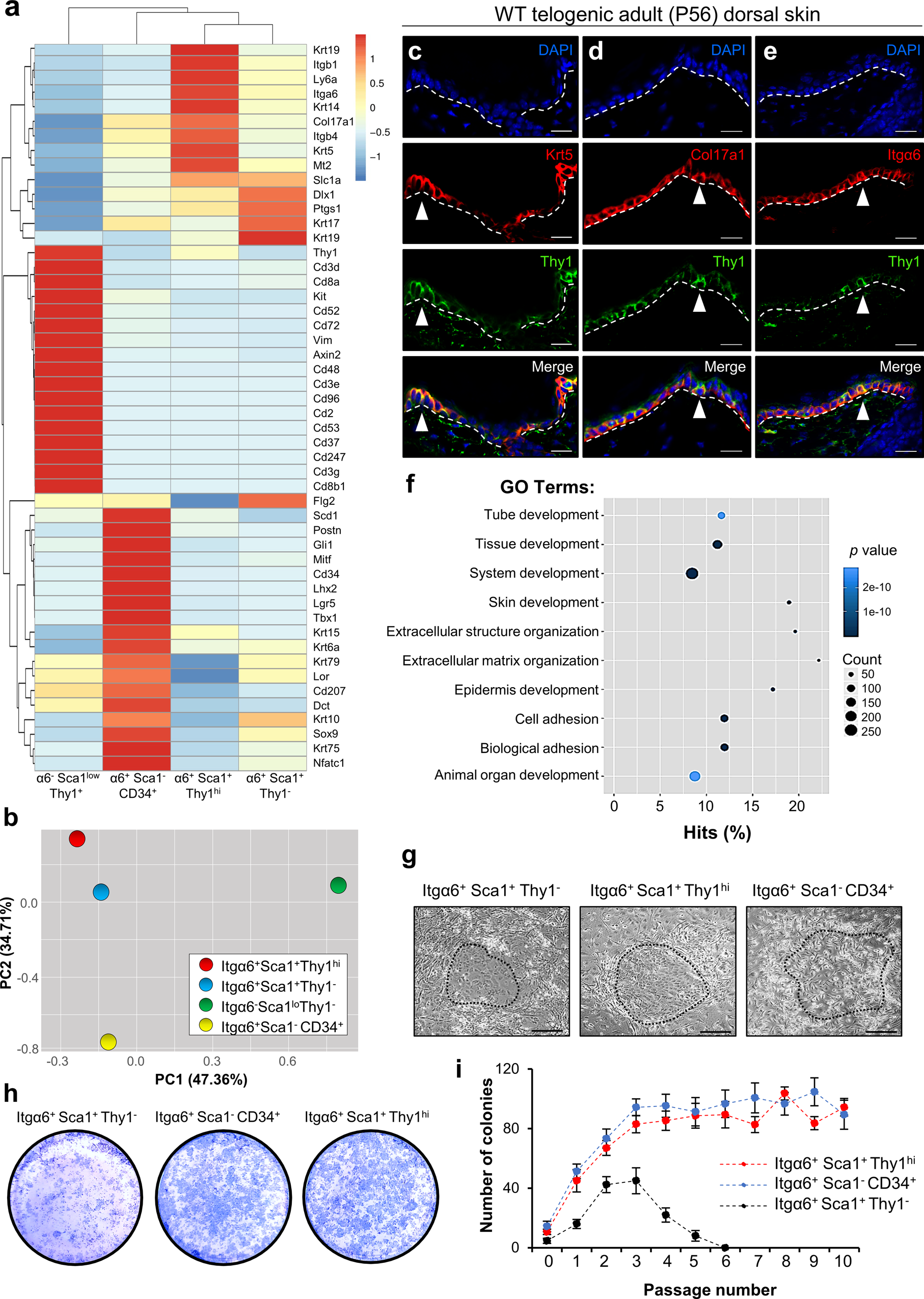

a Heatmap of absolute gene expression (RPKM values) scaled by gene based on bulk RNA-seq data comparing sorted populations of α6Sca1lowThy1+ dendritic epidermal T cells (DETCs) [n = 4 mice], α6+Sca1CD34+ hair follicle stem cells (HFSCs) [n = 5 mice], α6+Sca1+Thy1+ keratinocytes [n = 4 mice] and α6+Sca1+Thy1 keratinocytes [n = 4 mice]. b Principal component analysis (PCA) showing PC-1 and PC-2 from RNA-seq data of sorted populations [n = 5 pooled mice]. ce Co-immunostaining of Thy1 with (c) keratin-5 (Krt5), (d) Col17a1 and (e) Integrin-α6 (Itgα6) in sections of WT telogenic (P56) dorsal skins [n = 5 mice]. White arrowheads indicate cells expressing high levels of Thy1. f Gene ontology (GO) analysis of α6+Sca1+Thy1hi vs. α6+Sca1+Thy1 populations. Statistical testing was performed using the Wallenius’ distribution. g Images of holoclones grown 3 weeks post-plating of sorted α6+Sca1+Thy1, α6+Sca1+Thy1hi, and α6+Sca1CD34+ cells. h Rhodanile Blue staining of α6+Sca1+Thy1 keratinocytes, α6+Sca1CD34+ HFSCs and α6+Sca1+Thy1hi cultures at passage 4 [n = 3 individual cultures each]. i Quantification for mean number of colonies formed during passaging [n = 3 individual cultures each]. Error bars represent ±S.E.M. All source data are provided as a Source Data file. Dashed white lines demarcate the epidermis/dermis boundary. Scale bars: 50 μm (ce, g).
