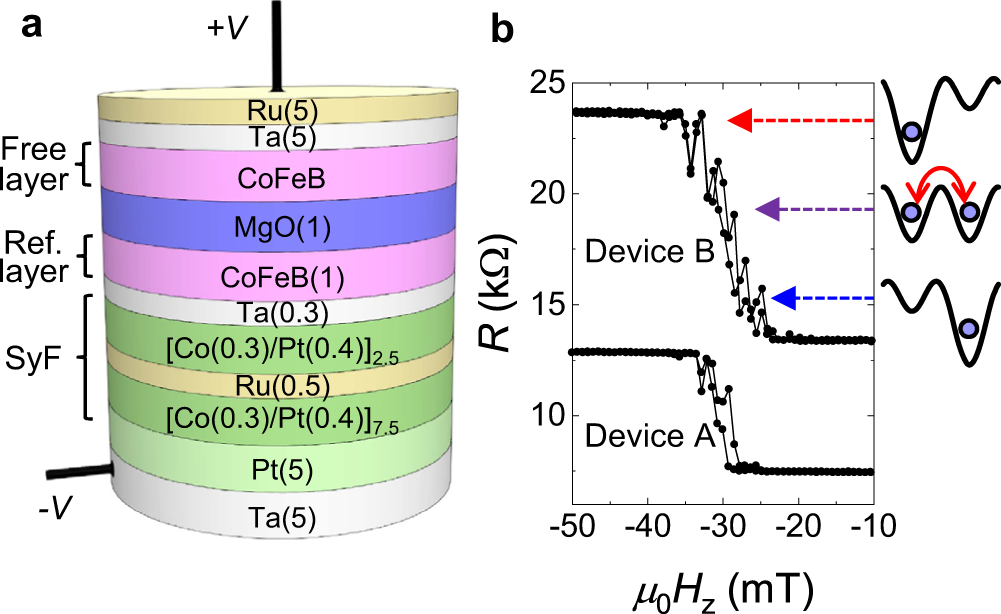

Fig. 1: Sample structure and R–Hz property.
From: Local bifurcation with spin-transfer torque in superparamagnetic tunnel junctions
a Stack structure of the magnetic tunnel junction. b Resistance R as a function of external perpendicular magnetic field Hz.
