Fig. 3: Visualizing of cell clusters marker genes between neotenic and metamorphosed axolotls in major metamorphosed tissues. | Nature Communications

Fig. 3: Visualizing of cell clusters marker genes between neotenic and metamorphosed axolotls in major metamorphosed tissues.

From: Construction of the axolotl cell landscape using combinatorial hybridization sequencing at single-cell resolution

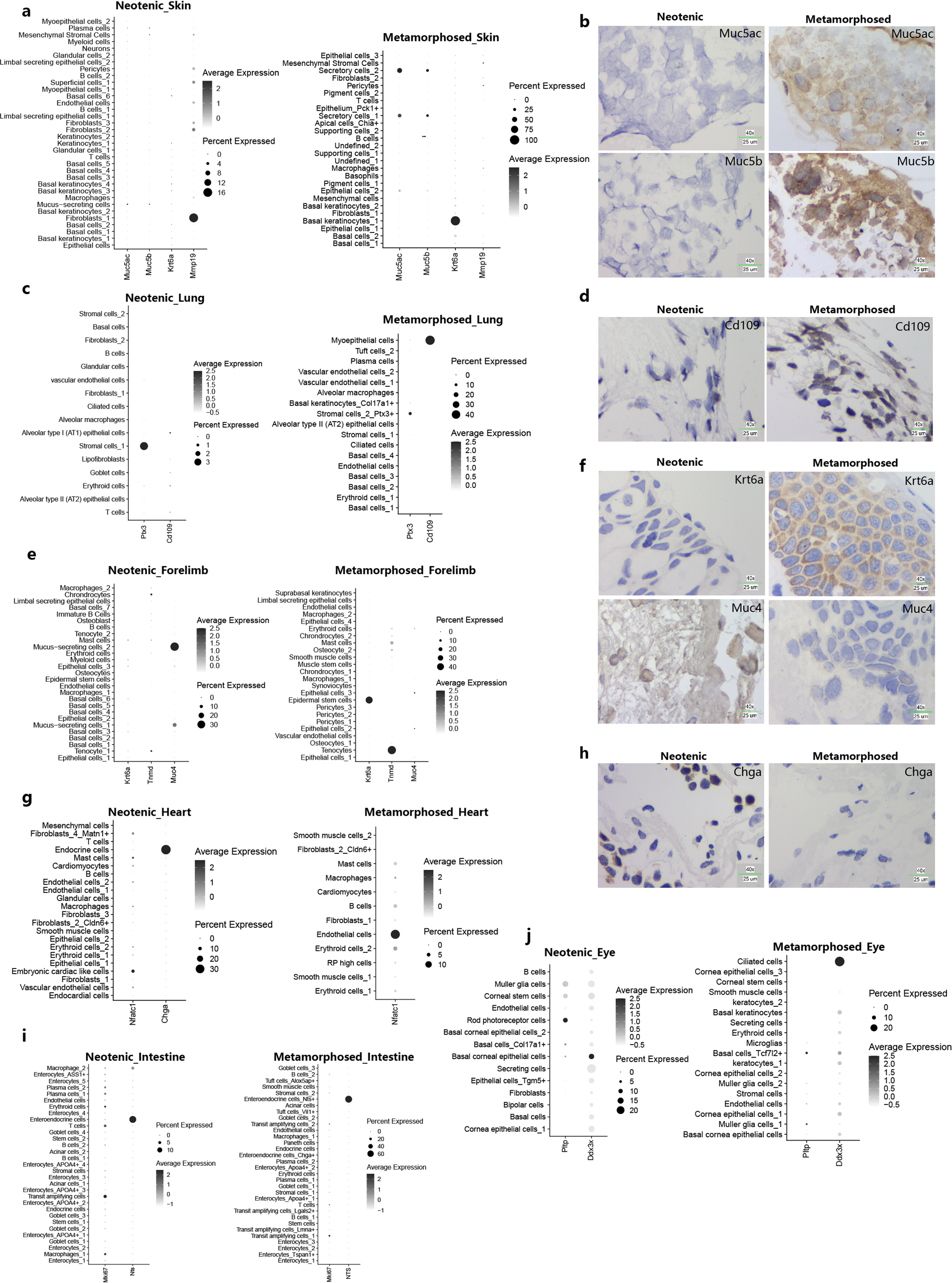

Fig. 3: Visualizing of cell clusters marker genes between neotenic and metamorphosed axolotls in major metamorphosed tissues.The alternative text for this image may have been generated using AI.

a, b Dotplots visualizing expression of genes and representative RNA in situ hybridizations in skin probing for Muc5ac and Muc5b (Representative images in neotenic metamorphosed axolotls are chosen from two independently animal experiment, scale bars are 25 μm, blue: nuclei). c, d Dotplots visualizing expression of genes and representative RNA in situ hybridizations in lung probing for Cd109 (Representative images in neotenic metamorphosed axolotls are chosen from two independently animal experiment, scale bars are 25 μm, blue: nuclei). e, f Dotplots visualizing expression of genes and representative RNA in situ hybridizations in fore limbs probing for Krt6a, Muc4 (Representative images in neotenic metamorphosed axolotls are chosen from two independently animal experiment, scale bars are 25 μm, blue: nuclei). g, h Dotplots visualizing expression of genes and representative RNA in situ hybridizations in heart probing for Chga (Representative images in neotenic metamorphosed axolotls are chosen from two independently animal experiment, scale bars are 25 μm, blue: nuclei). i Dotplots visualizing expression of representative genes in intestine. j Dotplots visualizing expression of representative genes in eye.
