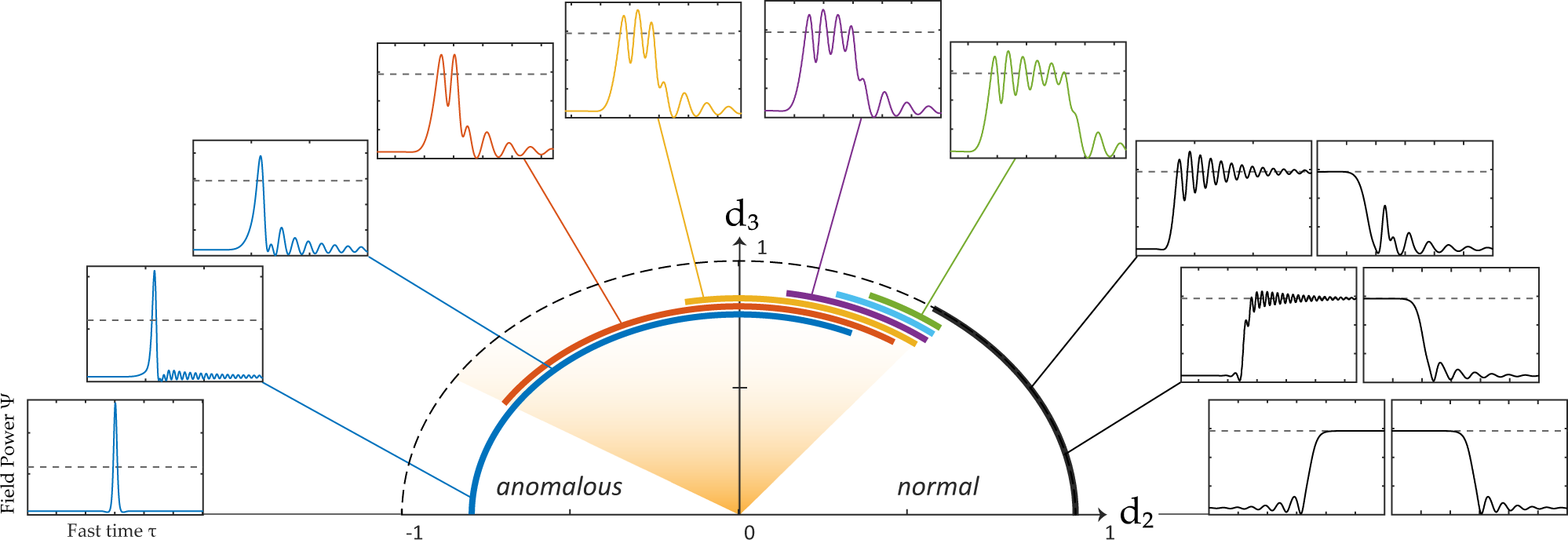

Fig. 1: Localized dissipative structures in the second-/third-order dispersion (\({{{{{{d}}}_{2}/d}}}_{{{{{{{{\bf{3}}}}}}}}}\)) plane.

From: Zero dispersion Kerr solitons in optical microresonators

Fig. 1

Clockwise from left: conventional dissipative solitons, dissipative solitons with dispersive-wave tails, zero-dispersion solitons with quantized periods (orange area), switching waves with dispersive-wave tails, conventional switching wave. Dashed gray line in outer figures represent the CW high-state solution. Thick bands represent the existence range of structures in the circular path. Further analysis and extended version of this figure with a video available in Supplementary Info.
