Fig. 5: Construction and experimental results of sensor array based on adjusting coassembly ratio.

From: A facile way to construct sensor array library via supramolecular chemistry for discriminating complex systems

Fig. 5: Construction and experimental results of sensor array based on adjusting coassembly ratio.

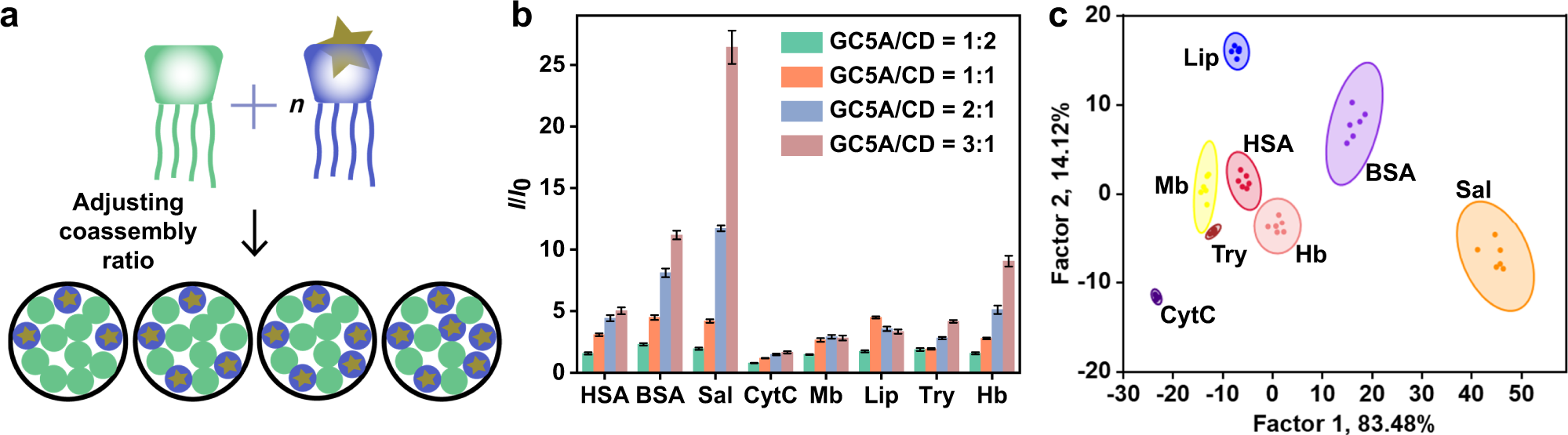

a Schematic diagram of SA5. Pattern recognition of proteins using SA5 ([GC5A]/[CD] = 0.5/1.0 μM, 1.0/1.0 μM, 2.0/1.0 μM, and 3.0/1.0 μM, [AlPcS4] = [GC5A]). b Fluorescence response patterns of SA5 against various proteins (23.8 μg/mL for each protein). The order of colored symbols from top to bottom in the legend corresponds to the column order of histogram from left to right. c Canonical score plot for the two factors of simplified fluorescence response patterns obtained from LDA with 95% confidence ellipses. Error bars in b represent mean ± s.d. (n  =  6 independent experiments).
