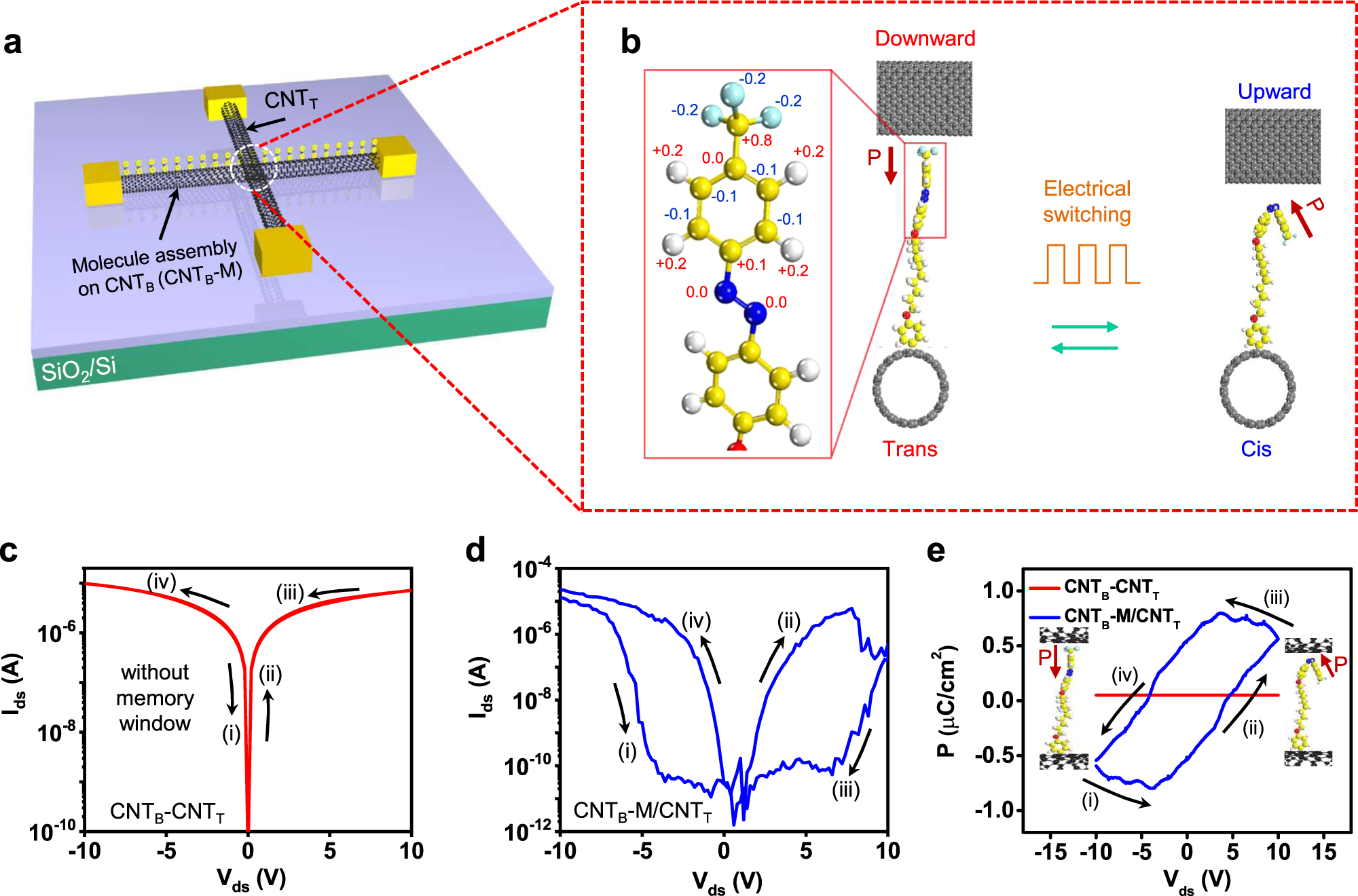

Fig. 2: Device structure and ferroelectric characteristics of the CNTB-M/CNTT vdWI.
From: CNT-molecule-CNT (1D-0D-1D) van der Waals integration ferroelectric memory with 1-nm2 junction area
