Fig. 2: Contour plots.
From: Unexpected steric hindrance failure in the gas phase F− + (CH3)3CI SN2 reaction

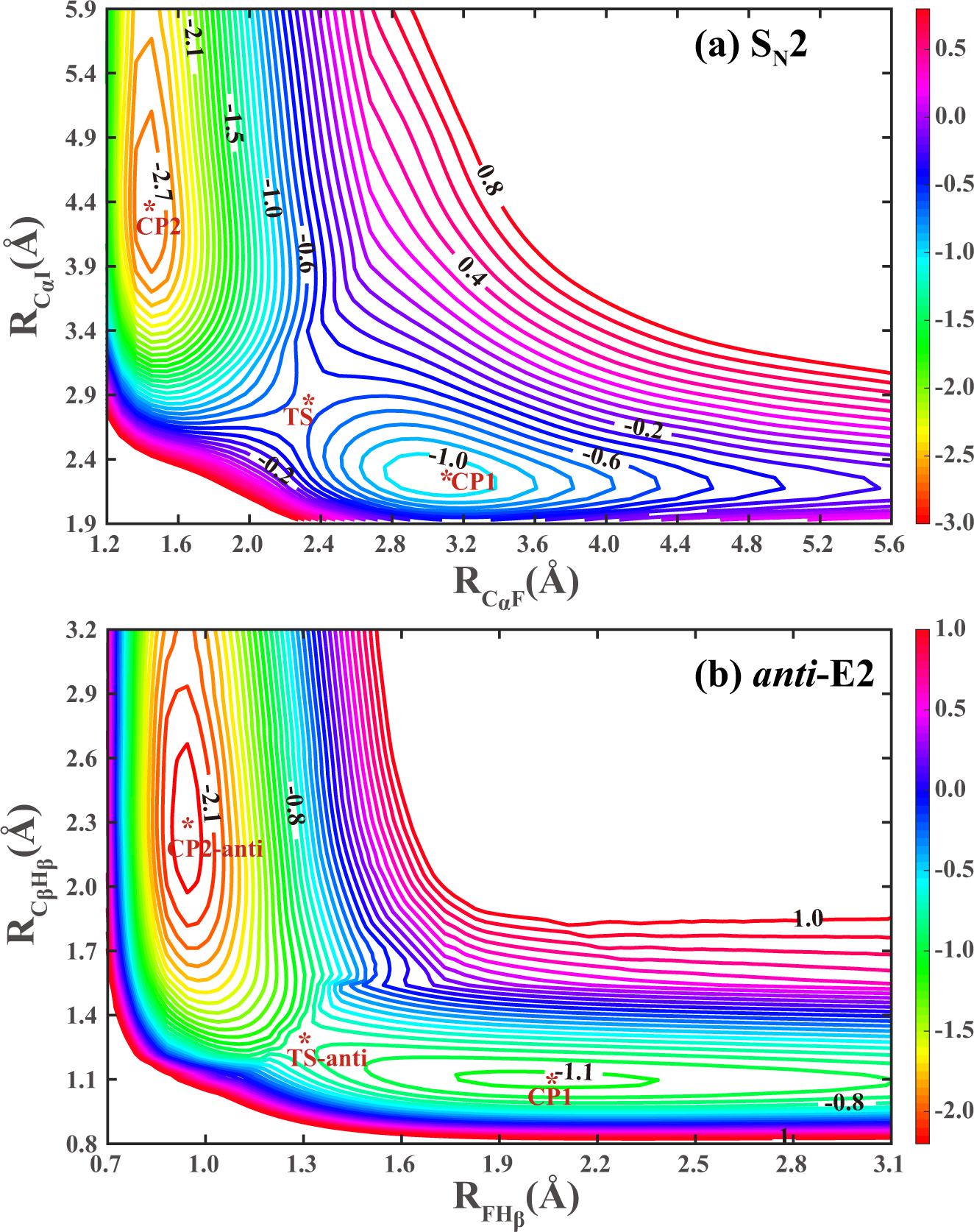

The contour plots of back-side attack SN2 (a) and anti-E2 (b) channels on the FI-NN PES by full-dimensional optimization.
