Fig. 4: Mechanical properties and mechanism of MGP-T fibers by thermal drawing.

From: Ultra-compact MXene fibers by continuous and controllable synergy of interfacial interactions and thermal drawing-induced stresses

Fig. 4: Mechanical properties and mechanism of MGP-T fibers by thermal drawing.The alternative text for this image may have been generated using AI.

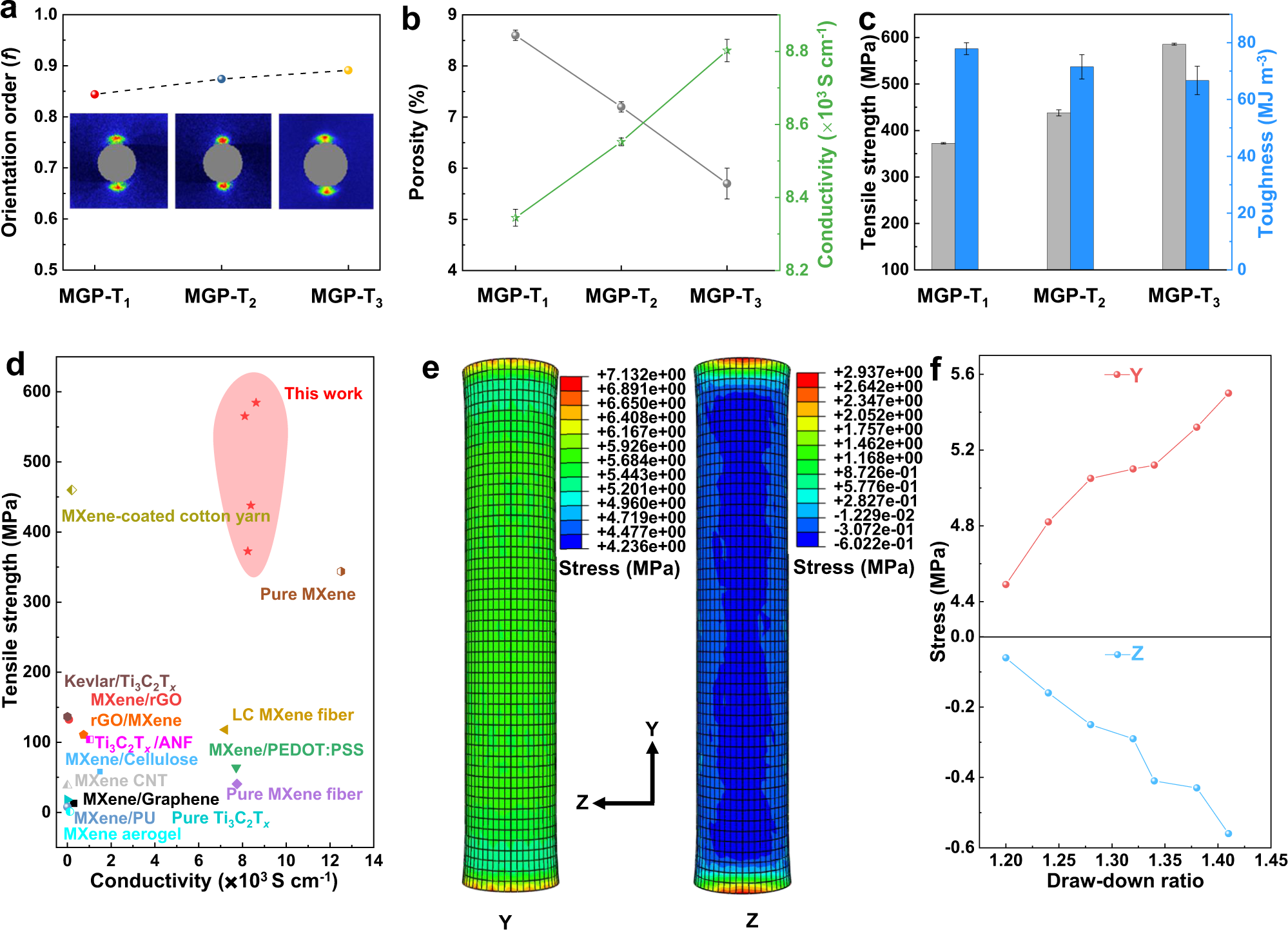

a Orientation order of MGP-T fibers fabricated by various draw-down ratios according to the WAXS patterns. Curves of the porosity and conductivity (b) and tensile strength and toughness (c) of MGP-T fibers. d Comparison of tensile strength and conductivity of the obtained ultra-compact MXene-based fibers with the reported MXene-based fibers. Stress distribution of the simulation (e) and the Y/Z stress curves at the increment of draw-down ratio (f) according to finite element analysis. All error bars show mean ± SD.
