Fig. 2: PXRD and CO2 sorption of TMOF-10-NH2.

From: Bromo- and iodo-bridged building units in metal-organic frameworks for enhanced carrier transport and CO2 photoreduction by water vapor

Fig. 2: PXRD and CO2 sorption of TMOF-10-NH2.

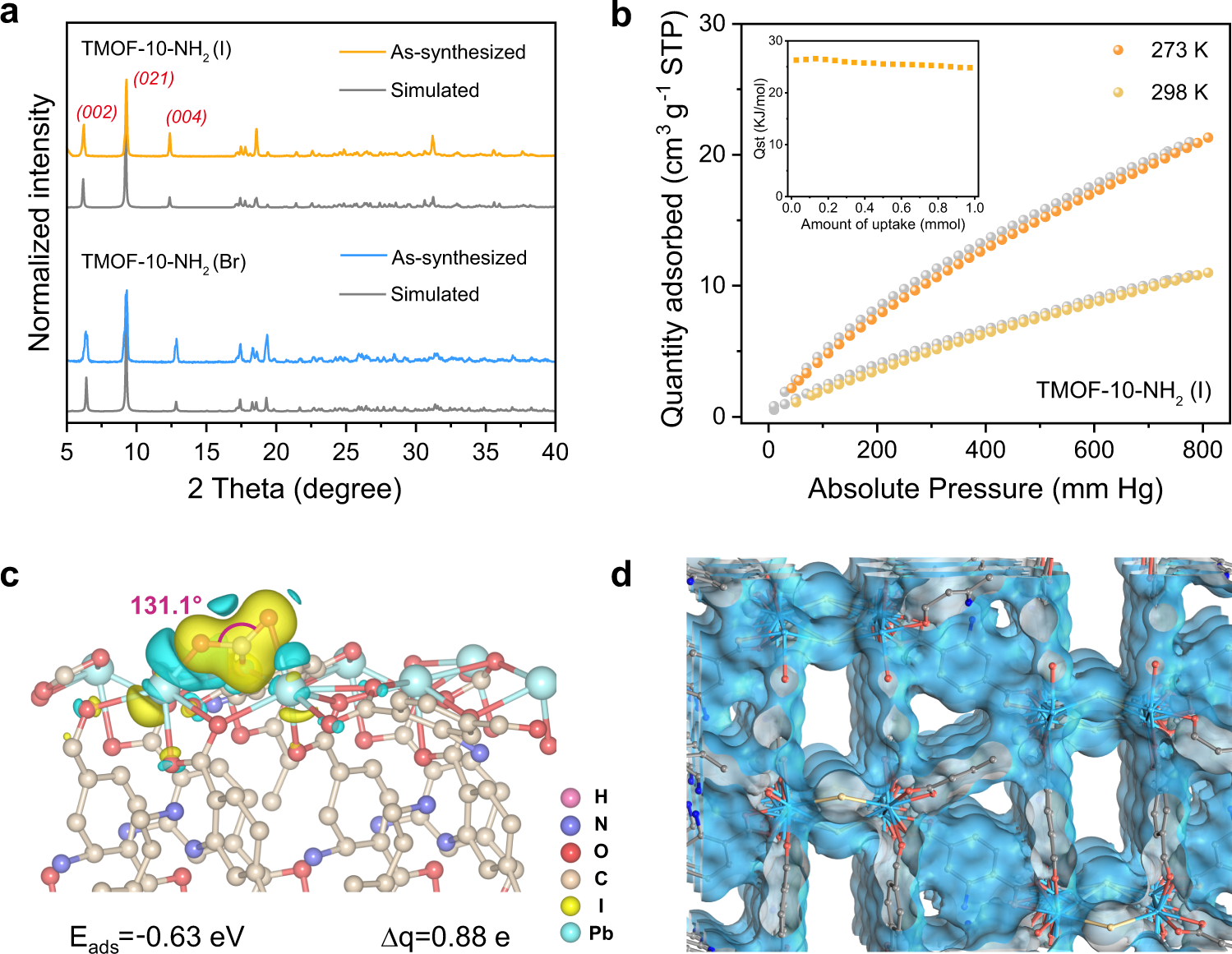

a Experimental and simulated PXRD patterns for TMOF-10-NH2. b CO2 absorption isotherms of TMOF-10-NH2(I) at 273 K and 298 K. Inset is the Qst of CO2 absorption. c Differential charge density of the adsorbed CO2 molecule on TMOF-10-NH2(I) along (001) plane. Eads adsorption energy, ∆q difference of Bader charge. d Simulated pore channel diagram of TMOF-10-NH2(I).
