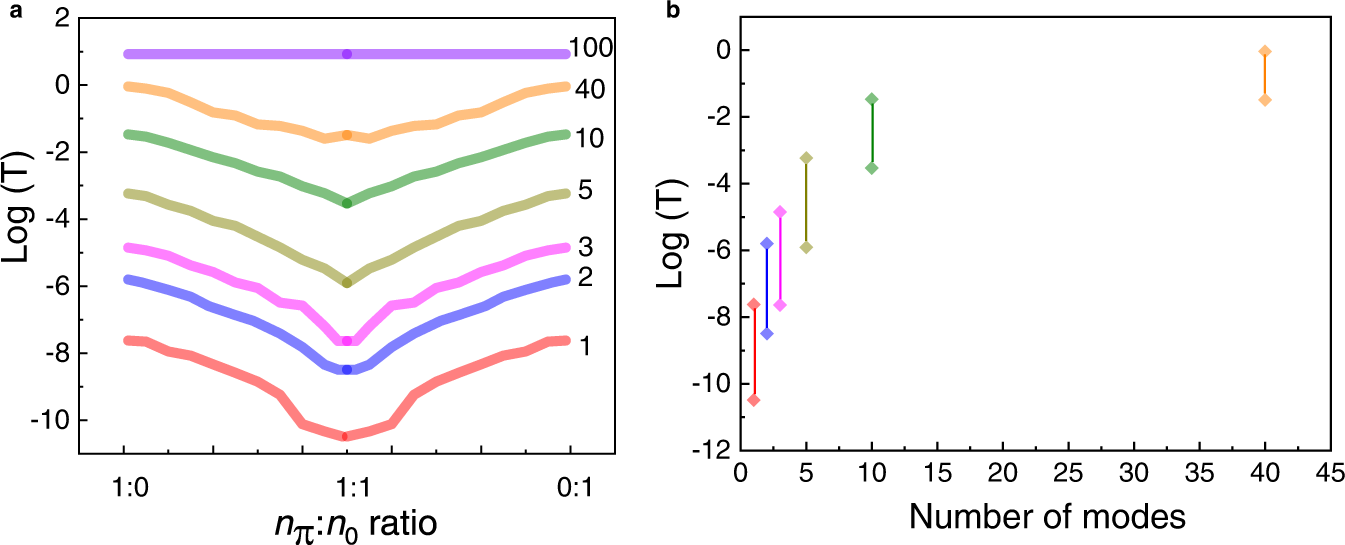

Fig. 6: The effect of phase randomization and the number of transverse modes on the transport properties of MEJs.
From: Molecular ensemble junctions with inter-molecular quantum interference
a Calculated transmission for junctions with the indicated number of conductance modes as a function of the phase ratio. The conductance of pure π and pure 0 phases, are identical. b The range of conductance variation as a function of the number of modes. With increasing number of modes, the difference between minimum conductance under complete phase randomization and maximum conductance under uniform phase, becomes smaller.
