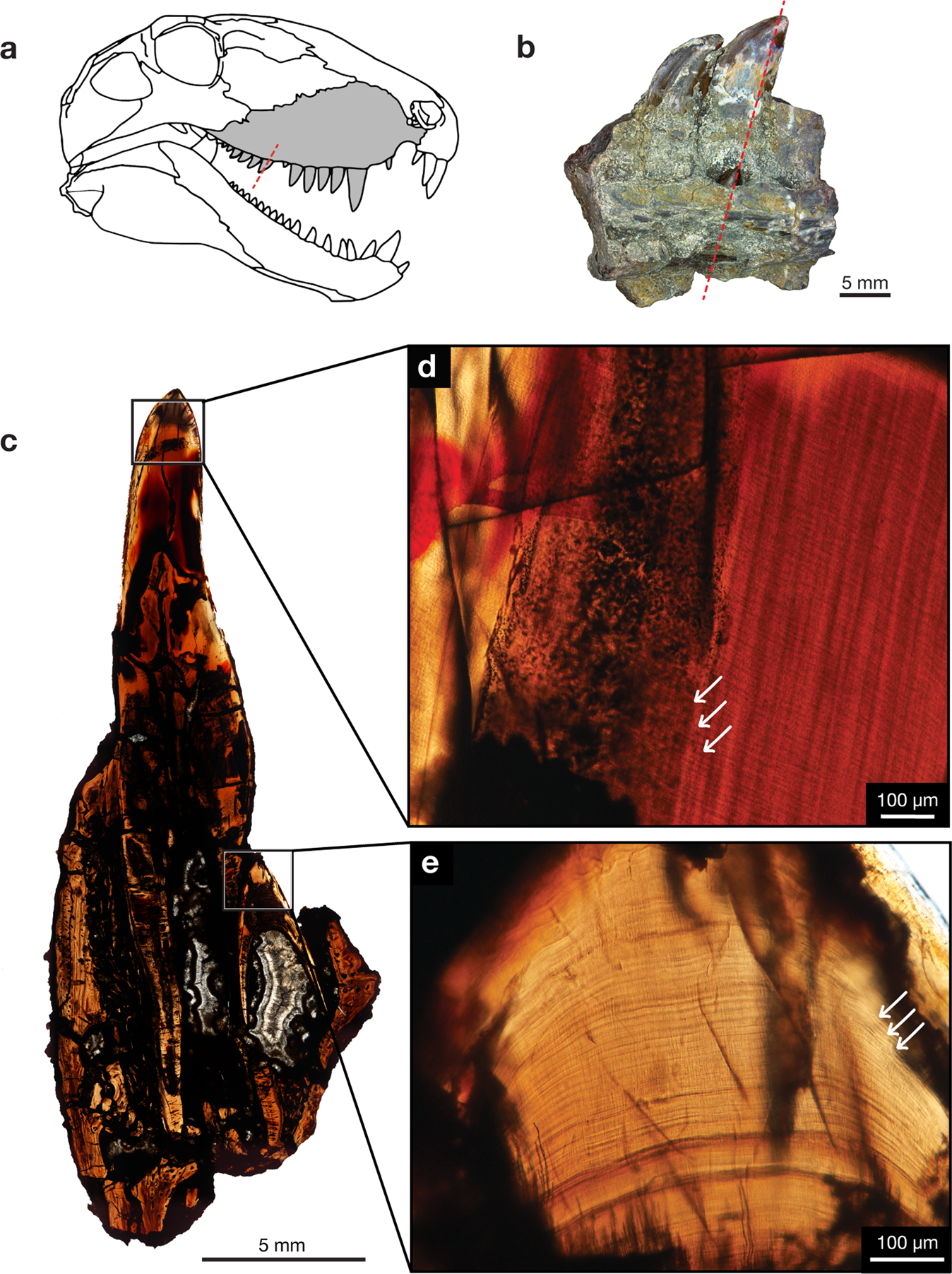

Fig. 3: Incremental lines of Dimetrodon cf. D. limbatus.
From: Permian hypercarnivore suggests dental complexity among early amniotes
a Lateral view of Dimetrodon. b ROMVP 85510, maxillary tooth family, photographed in lingual view showing the plane of LL section through the functional tooth and replacement tooth. c Whole view of longitudinal LL section near the crown apex of functional and replacement tooth. d Closeup view of functional tooth LL cross-section showing incremental lines, white arrows. e Closeup view of replacement tooth LL cross-section showing incremental lines, white arrows. Skull drawing was modified from Reisz42 and Brink and Reisz43.
