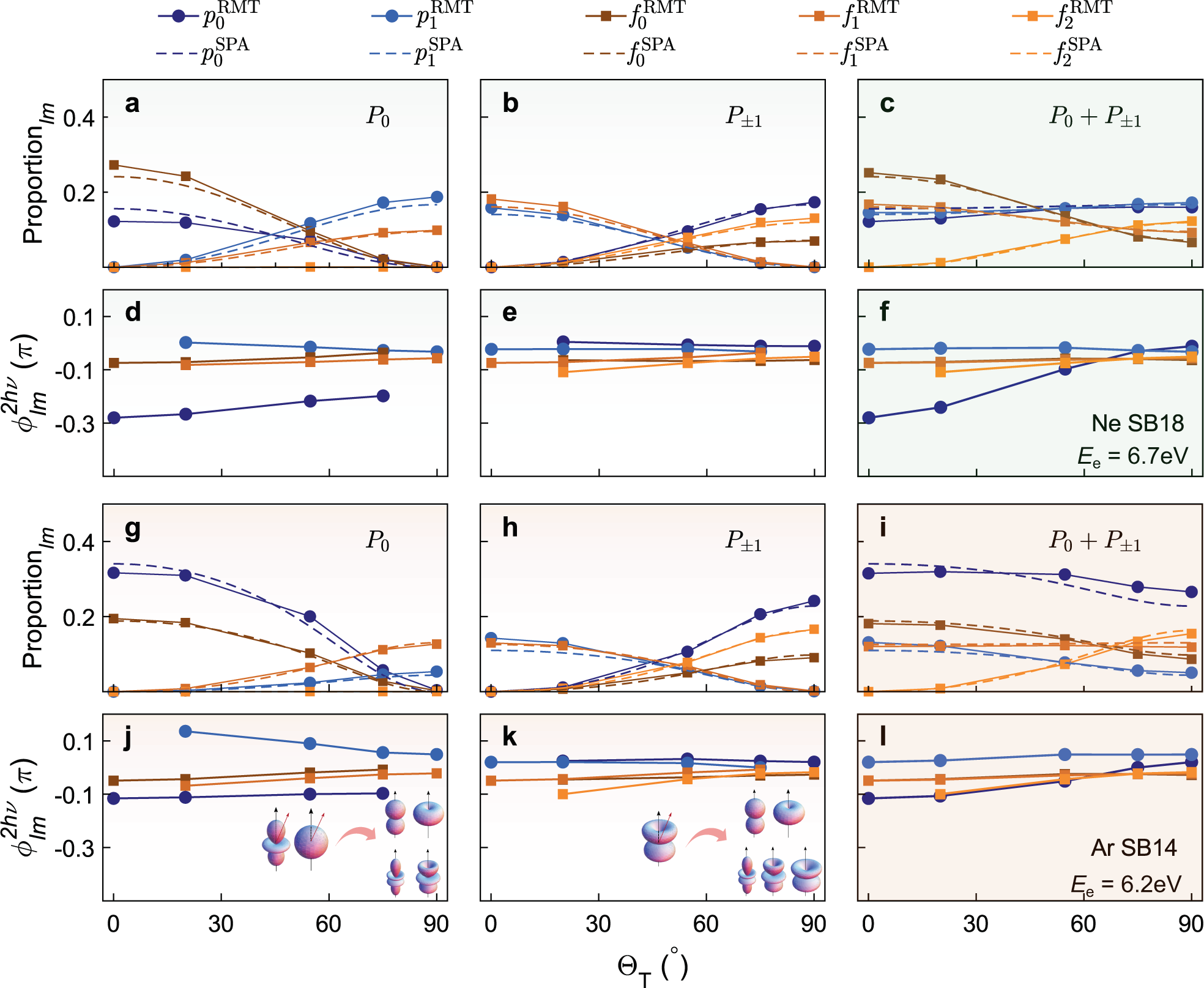

Fig. 4: Full partial-wave analysis of neon and argon.
From: Atomic partial wave meter by attosecond coincidence metrology
a–c Partial-wave proportions (averaged over all pump-probe time-delays) as a function of ΘT in neon for the residual ionic states of a P0, b P±1, and c the incoherent sum of P0 and P±1. d–f The m-resolved two-photon phase shifts in neon for the same initial states as a–c. The RMT calculated proportions and phase shifts are labeled as solid dot lines, p0 (dark blue), p1 (light blue), f0 (dark orange), f1 (orange), and f2 (light orange). The SPA predictions are labeled as dashed lines with the same coloring as RMT. g–l As a–f but for argon.
