Fig. 2: Structural characterization of the nanoporous intermetallic compounds (or alloys).

From: Ultrafine nanoporous intermetallic catalysts by high-temperature liquid metal dealloying for electrochemical hydrogen production

Fig. 2: Structural characterization of the nanoporous intermetallic compounds (or alloys).The alternative text for this image may have been generated using AI.

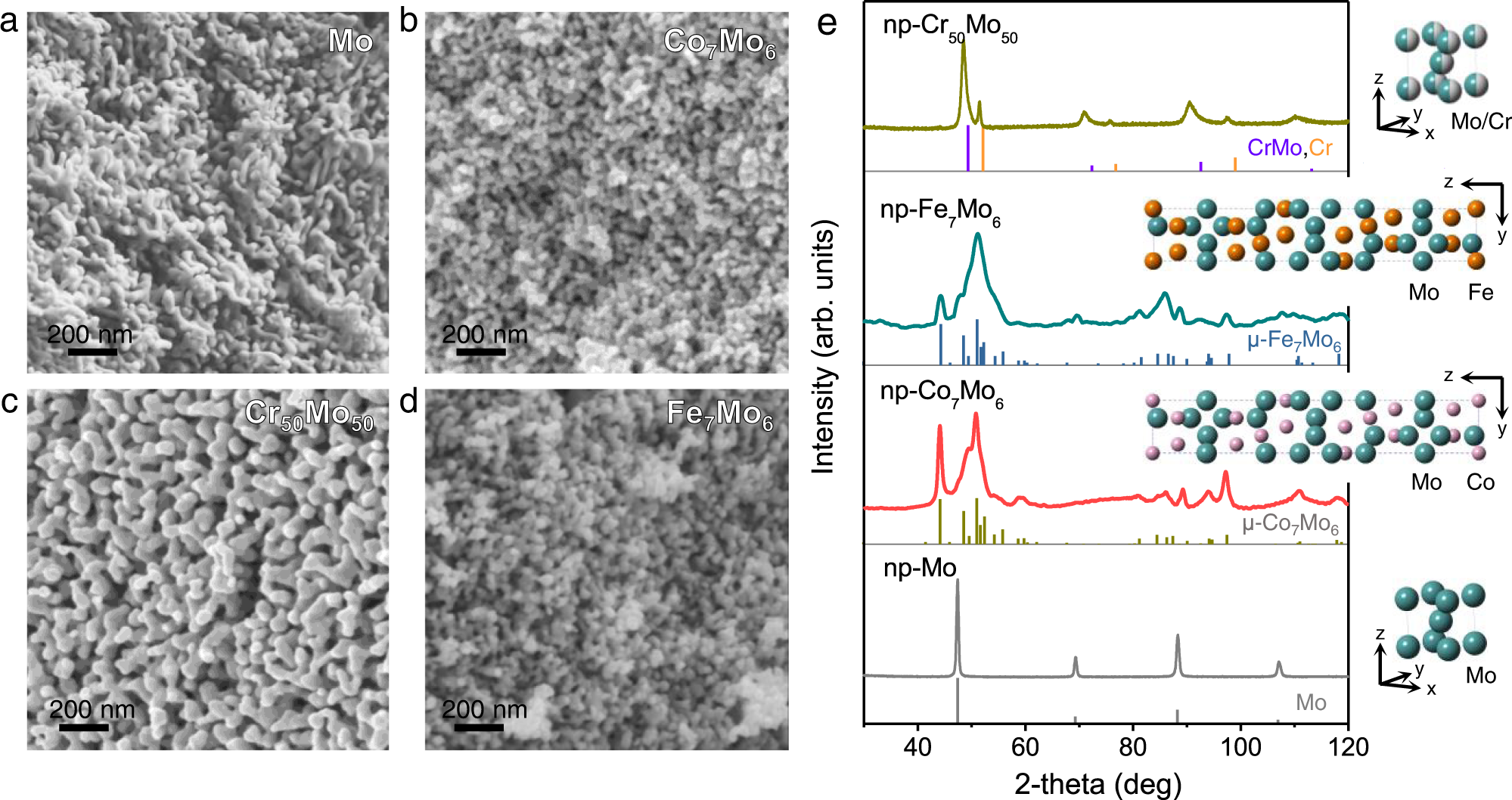

SEM images of a np-Mo, b np-Co7Mo6, c np-Cr50Mo50 and d np-Fe7Mo6 prepared by LMD at 973 K for 120 s. e XRD patterns of the np-Mo, np-Co7Mo6, np-Cr50Mo50, and np-Fe7Mo6. Standard patterns of Mo (PDF#42-1120), μ-Co7Mo6 (PDF#29-0489), μ-Fe7Mo6 (PDF#31-0641), Cr (PDF#06-0694), and Cr-Mo (PDF#65-9000) are also shown as references. Insets: Unit cell models of the corresponding phases: bcc-Mo, μ-Co7Mo6, μ-Fe7Mo6, and bcc-CrMo.
