Fig. 4: Structure of the bulk Hg halide film.

From: Role of chemisorbing species in growth at liquid metal-electrolyte interfaces revealed by in situ X-ray scattering

Fig. 4: Structure of the bulk Hg halide film.

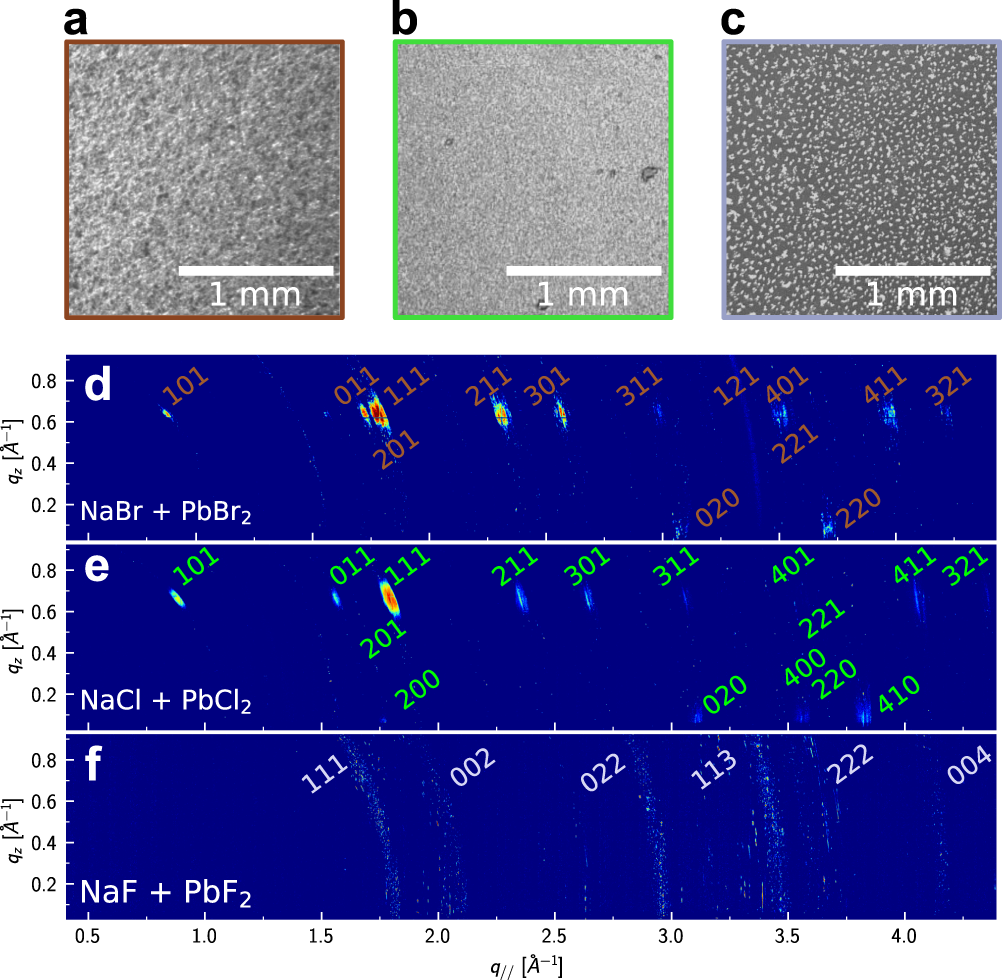

a–c Optical microscopy images and d–f X-ray intensity maps of the deposits on Hg electrodes formed by 1 h deposition at −0.60 V in 0.01 M NaX + 0.25 mM PbX2 with X being a, d Br, b, e Cl, and c, f F, respectively. The GID data were measured at incidence angles of 0.122° and transformed into the reciprocal space coordinates qz and q//. All the experiments were recorded after 1 h deposition at −0.60 V. The miller indexes of the diffraction peaks for the identified compounds d Pb(OH)Br, e Pb(OH)Cl, and f PbF2 are given in the maps.
