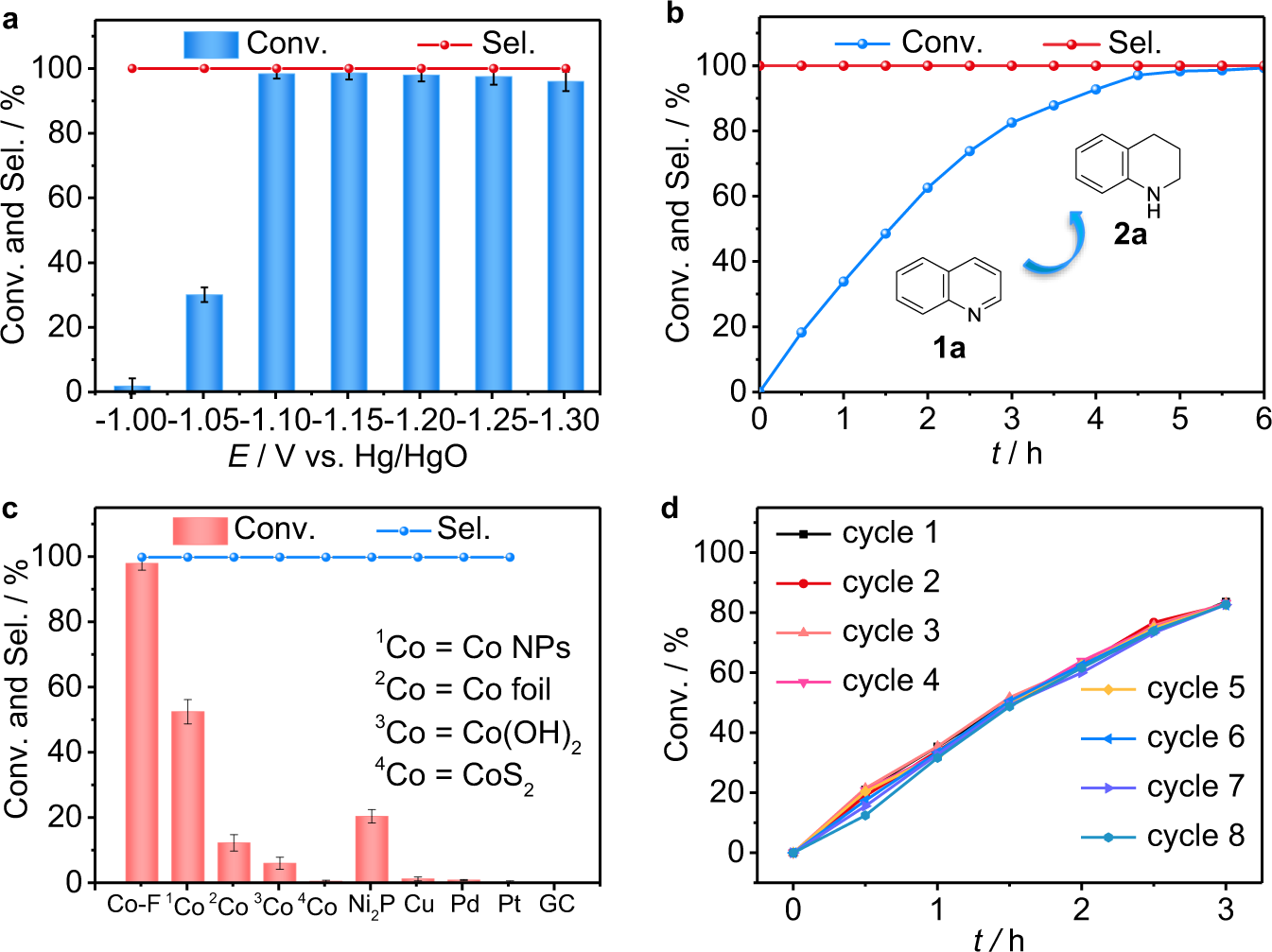

Fig. 2: Performance of the electrocatalytic hydrogenation of quinolines over a Co-F cathode.
From: Electrocatalytic hydrogenation of quinolines with water over a fluorine-modified cobalt catalyst
a Potential-dependent and b time-dependent 1a conversion (Conv.) and 2a selectivity (Sel.) over the Co-F. c Comparison results of converting 1a to 2a over other electrodes. d Cycle-dependent 1a Conv. over the Co-F within 3 h plotting by conversion as a function of time for each cycle. Reaction conditions: 1a (0.1 mmol, 14.28 mmol L−1), a mixed solution of 1.0 M KOH/dioxane (6:1 v/v, 7 mL), RT. a 8 h; b, c −1.1 V, 6 h; d −1.1 V, 3 h. Error bars correspond to the standard deviation of three independent measurements.
