Fig. 5: The applications of the methodology. | Nature Communications

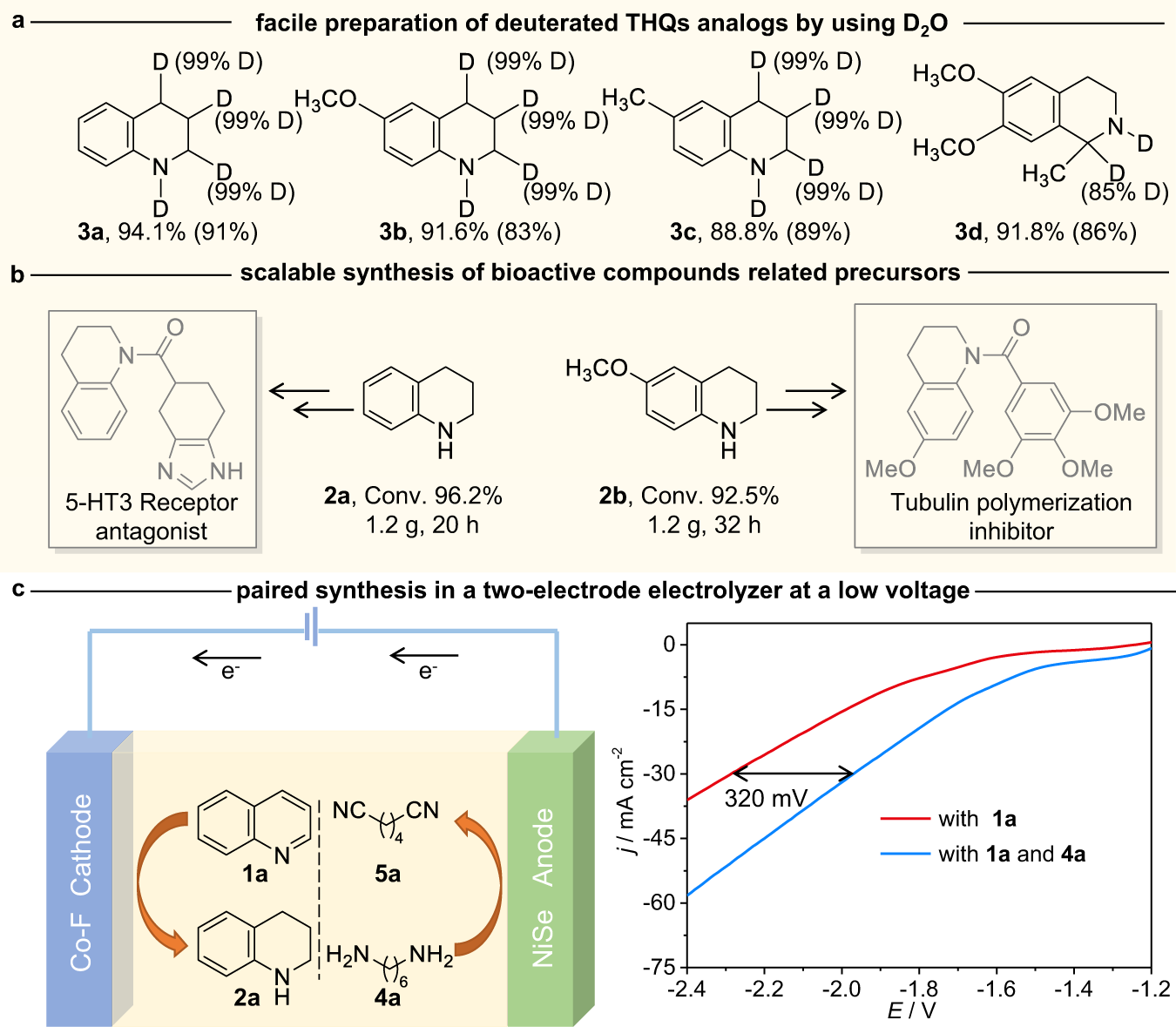

Fig. 5: The applications of the methodology.

From: Electrocatalytic hydrogenation of quinolines with water over a fluorine-modified cobalt catalyst

Fig. 5: The applications of the methodology.The alt text for this image may have been generated using AI.

a Facile preparation of deuterated analogs of THQs by using D2O over the Co-F cathode. Reaction conditions: substrates (0.2 mmol, 28.57 mmol L−1), Co-F electrode (working area: 1.0 cm2), a mixed solution of 0.5 M K2CO3 (D2O)/dioxane (6:1 v/v, 7 mL), −1.1 V, RT, 16 h. b Gram-scale synthesis of bioactive precursors over an enlarged Co-F (3.0 × 3.0 cm2) cathode. c Paired synthesis of THQ and adiponitrile in a Co-F||NiSe two-electrode electrolyzer.
