Fig. 3: Application of Tri-HT adhesive materials.

From: Small-molecule ionic liquid-based adhesive with strong room-temperature adhesion promoted by electrostatic interaction

Fig. 3: Application of Tri-HT adhesive materials.

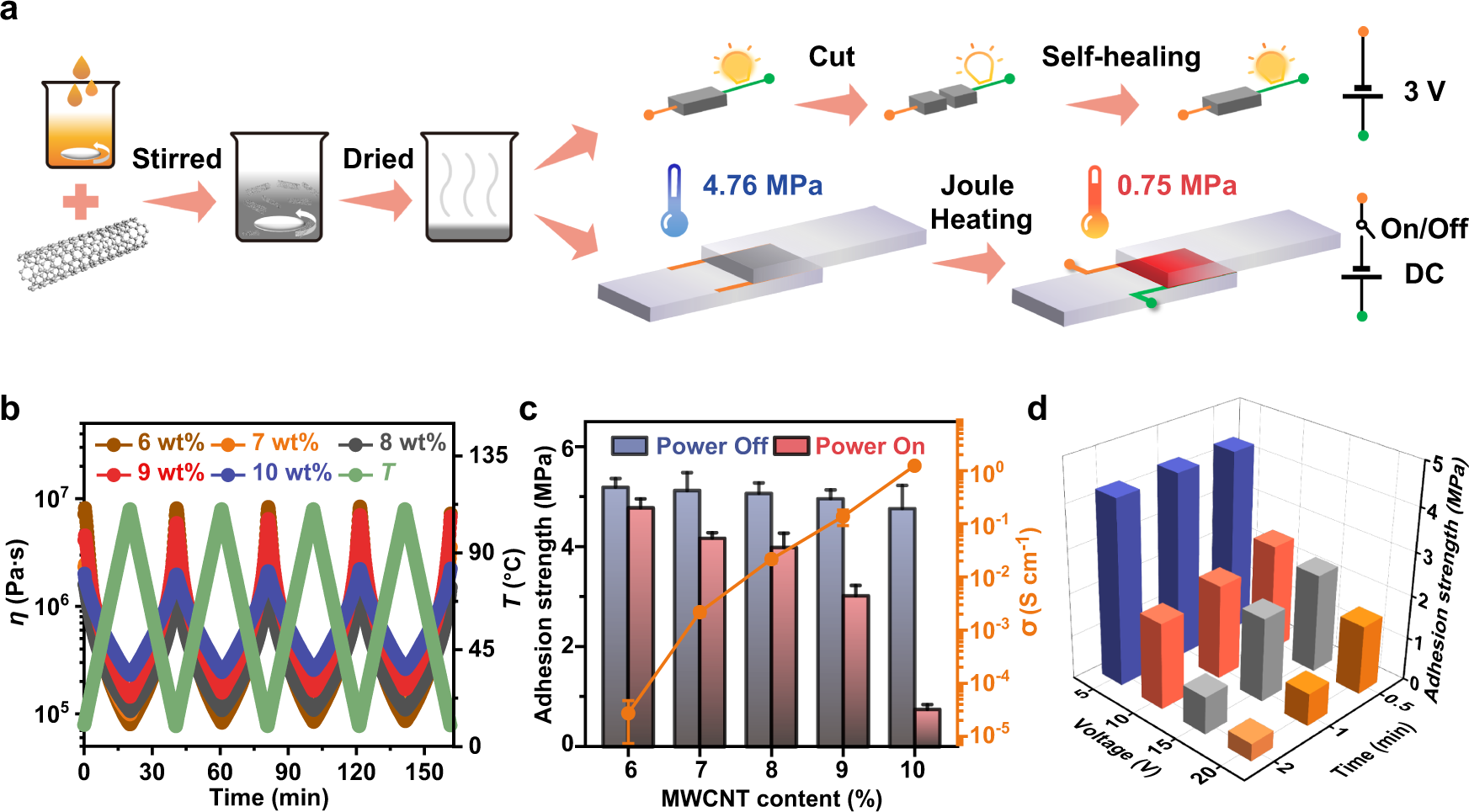

a Schematic of preparation of multifunctional Tri-HT/MWCNTs. During joule heating, copper foil tapes were attached to the edge of the substrates for electrical connection. The direction of current is distinguished by different colors. b Temperature-dependent viscosity of Tri-HT/MWCNTs. c Adhesion strengths and electronic conductivity of Tri-HT/MWCNTs on glass substrate as a function of the MWCNT content and triggered by Joule-heating effect (20 V, 1 min). d Adhesion strengths of Tri-HT/MWCNTs (10 wt%) as a function of voltage and time. All tests were carried out at 25 °C. Error bars correspond to the standard deviation of 3–5 measurements for each analysis.
