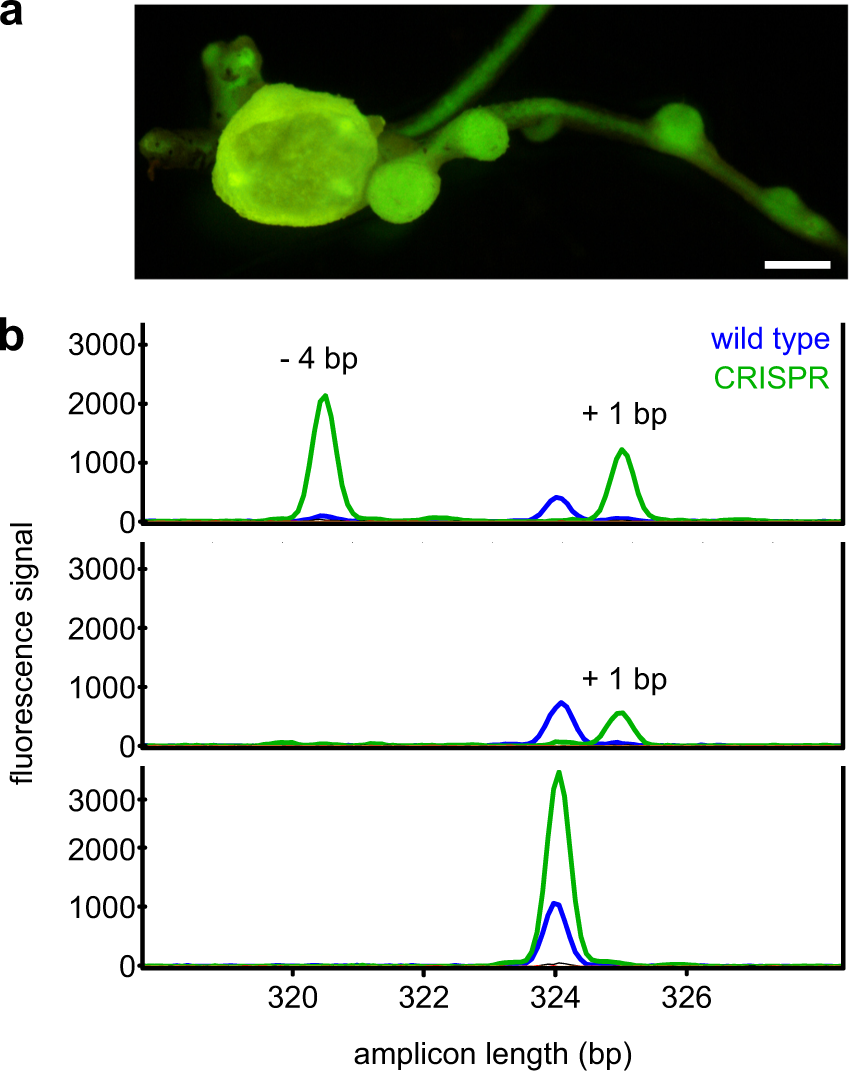

Fig. 1: Fluorescence of transformed roots and AFLP analysis of nodule pools.
From: Enzymes and cellular interplay required for flux of fixed nitrogen to ureides in bean nodules
