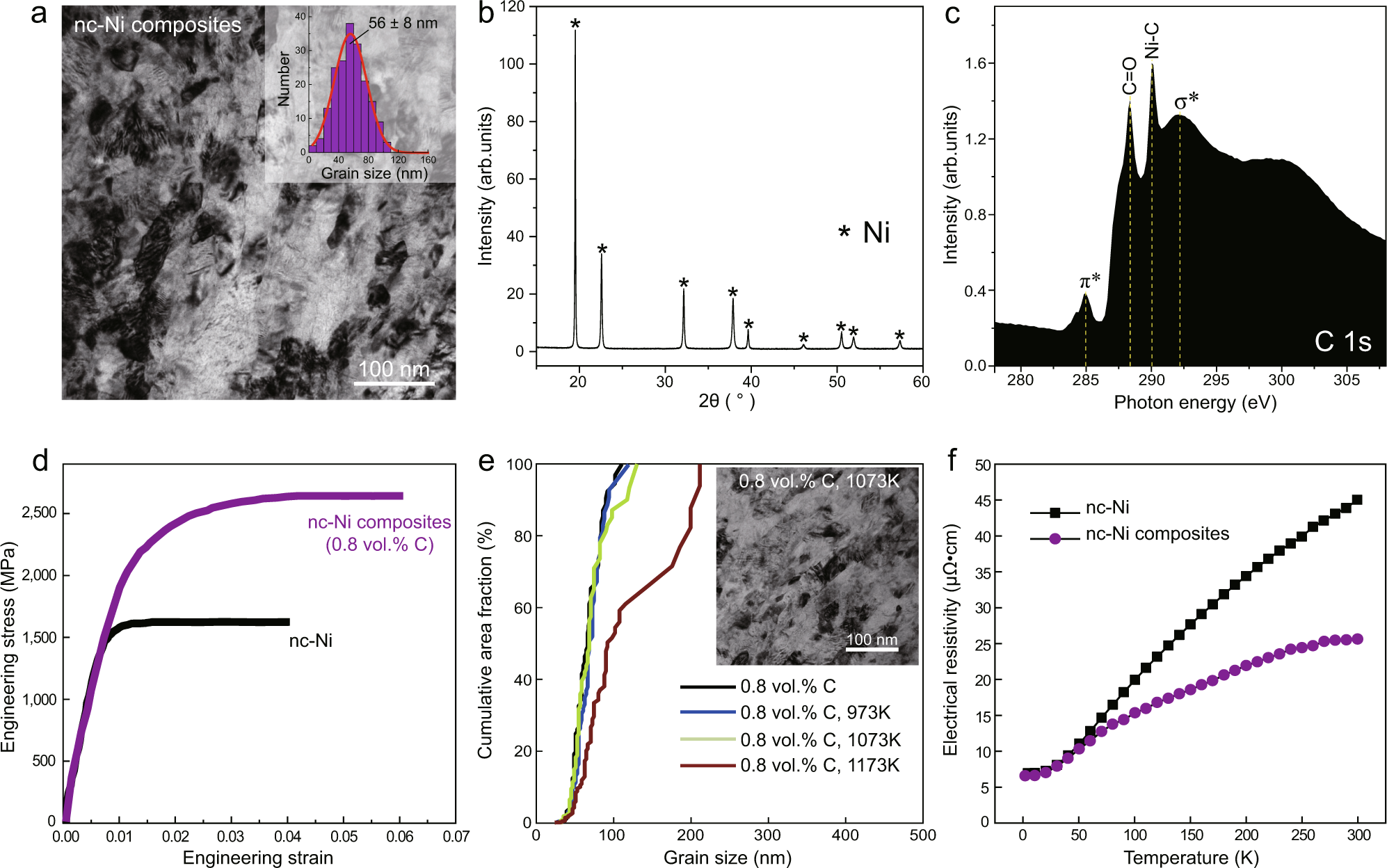

Fig. 5: Microstructure, tensile properties, and thermal stability of pure nc-Ni and nc-Ni composite.

a A bright-field TEM image of nc-Ni composite (0.8 vol.% C). Inset shows the Ni grain size distribution of the composite. The grain size of nc-Ni obtained with the identical fabrication process is 61 ± 10 nm. b SXRD pattern of the composite. Note that no Ni-C compounds are observed in SXRD experiments. c NEXAFS spectrum at the C-K edge of nc-Ni composites (0.8 vol.% C). Ni-C chemical bond, which corresponds to the absorption peak at 290.3 eV, is identified. d Representative tensile engineering stress-strain curves for nc-Ni and nc-Ni composites. Simultaneous enhancement of yield strength, fracture strength, and uniform elongation are observed for nc-Ni composites compared to pure nc-Ni. e Thermal stability of nc-Ni composites: cumulative area fraction of grain size of the as-fabricated nc-Ni composite (0.8 vol.% C) and after being annealed at various temperatures (973 K to 1193 K) for 1 h. No apparent grain growth was observed for nc-Ni composite after annealing at 1073 K for 1 h. The inset shows a representative bright-field TEM image for this annealing condition. f Electrical resistivity of nc-Ni and nc-Ni composite measured at the temperature range of 2 to 300 K. The electrical conductivity of nc-Ni composite (0.8 vol.% C) is ~77% higher than that of nc-Ni (3.9 S/m vs. 2.2 S/m) at room temperature (298 K).
