Fig. 4: Percentage changes in yield gains of four categories of genotype and CK in the same three future periods under four SSPs, projected by the model.

From: Climate change may outpace current wheat breeding yield improvements in North America

Fig. 4

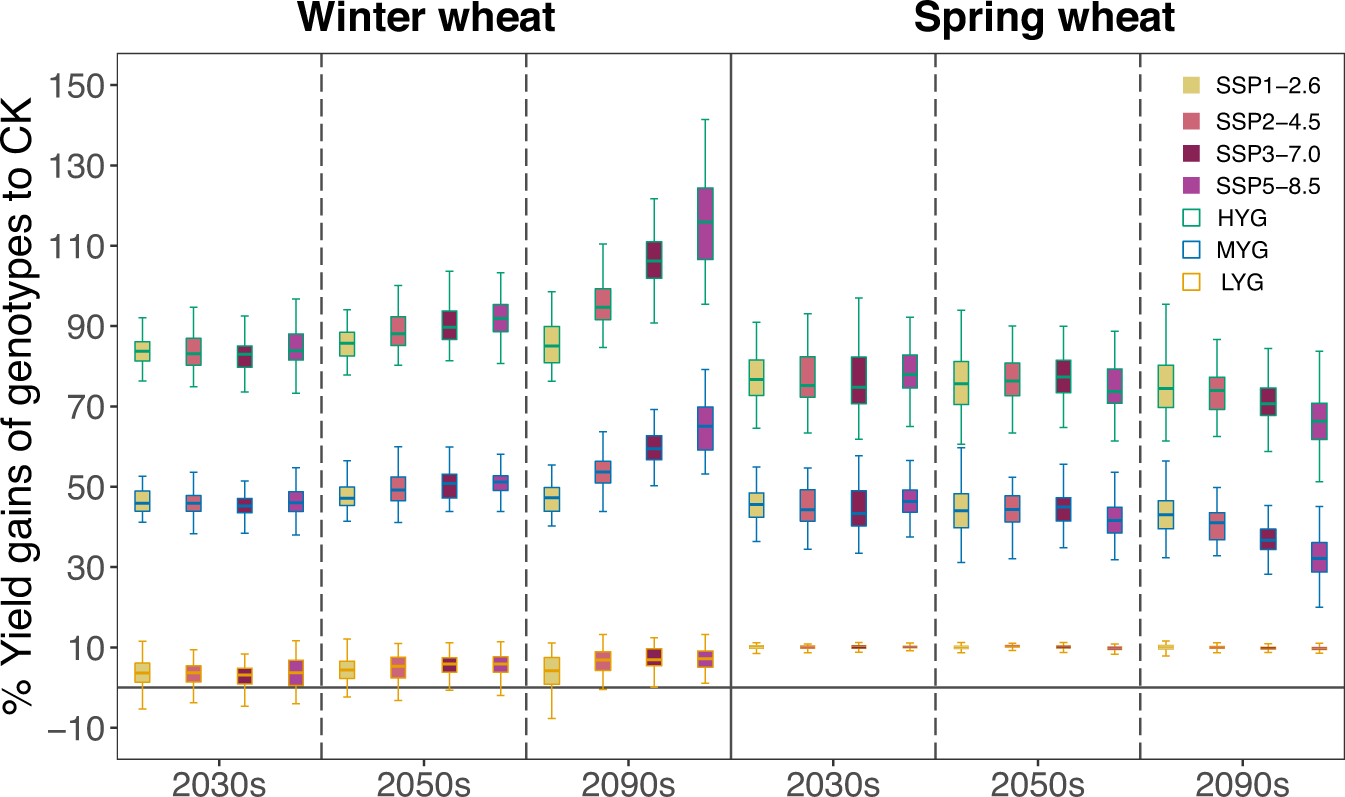

Boxplots show the median (the center line), 25th and 75th quartiles (lower and higher boxes), and smaller and largest value within 1.5 times interquartile range (lower and higher whiskers) in each period across six climate models. The filling color of boxplots indicates four SSPs. Within a column of an SSP, LYG is a yellow-bordered boxplot, MYG is a blue-bordered boxplot, and HYG is a red-bordered boxplot. Source data are provided as a Source Data file.
