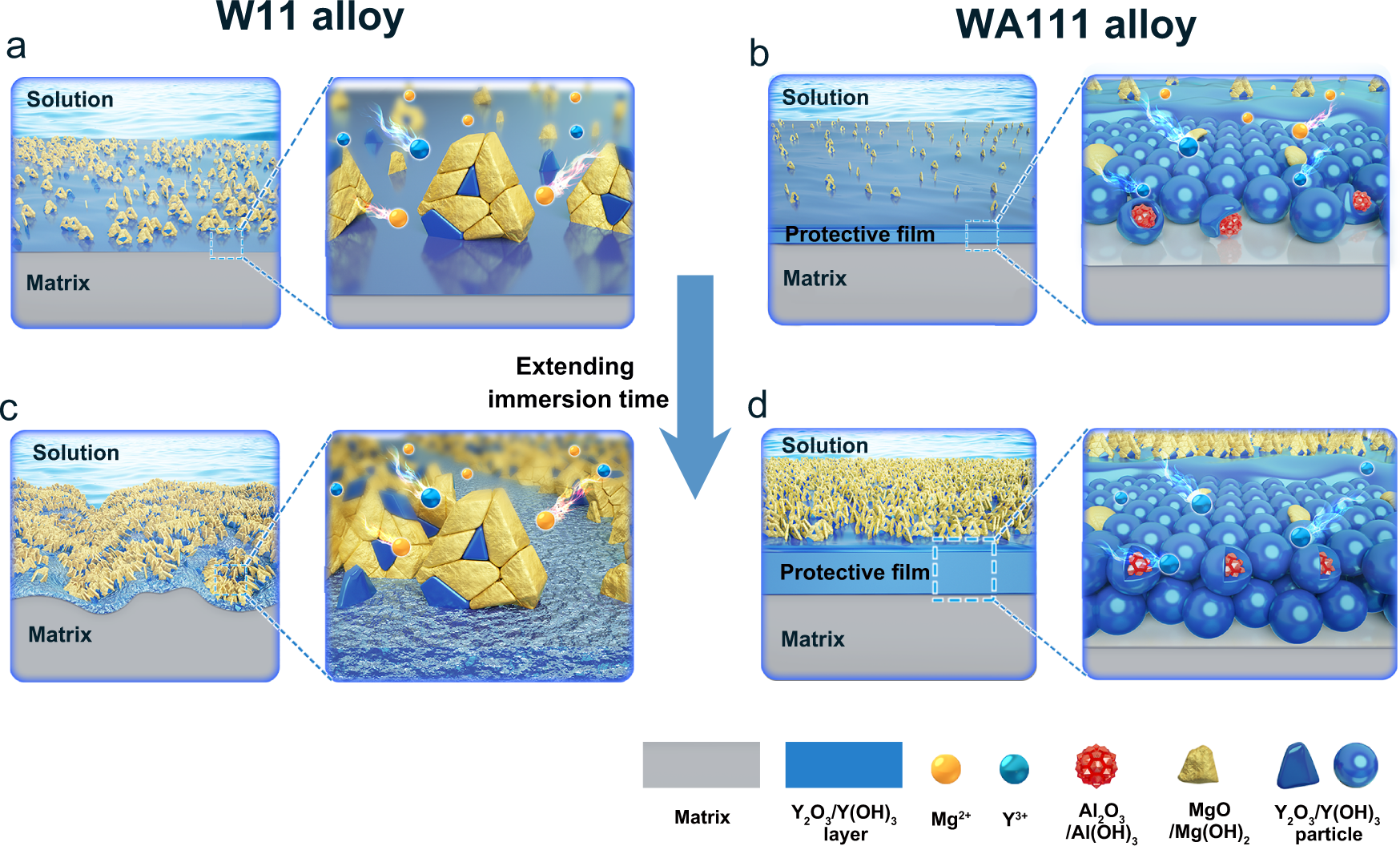

Fig. 5: Schematic diagram of corrosion resistance mechanism of W11 and WA111 alloys.
From: Towards development of a high-strength stainless Mg alloy with Al-assisted growth of passive film
Early stage in brine solution of a W11 and b WA111 alloy; long-time exposure in brine solution of c W11 and d WA111 alloy.
