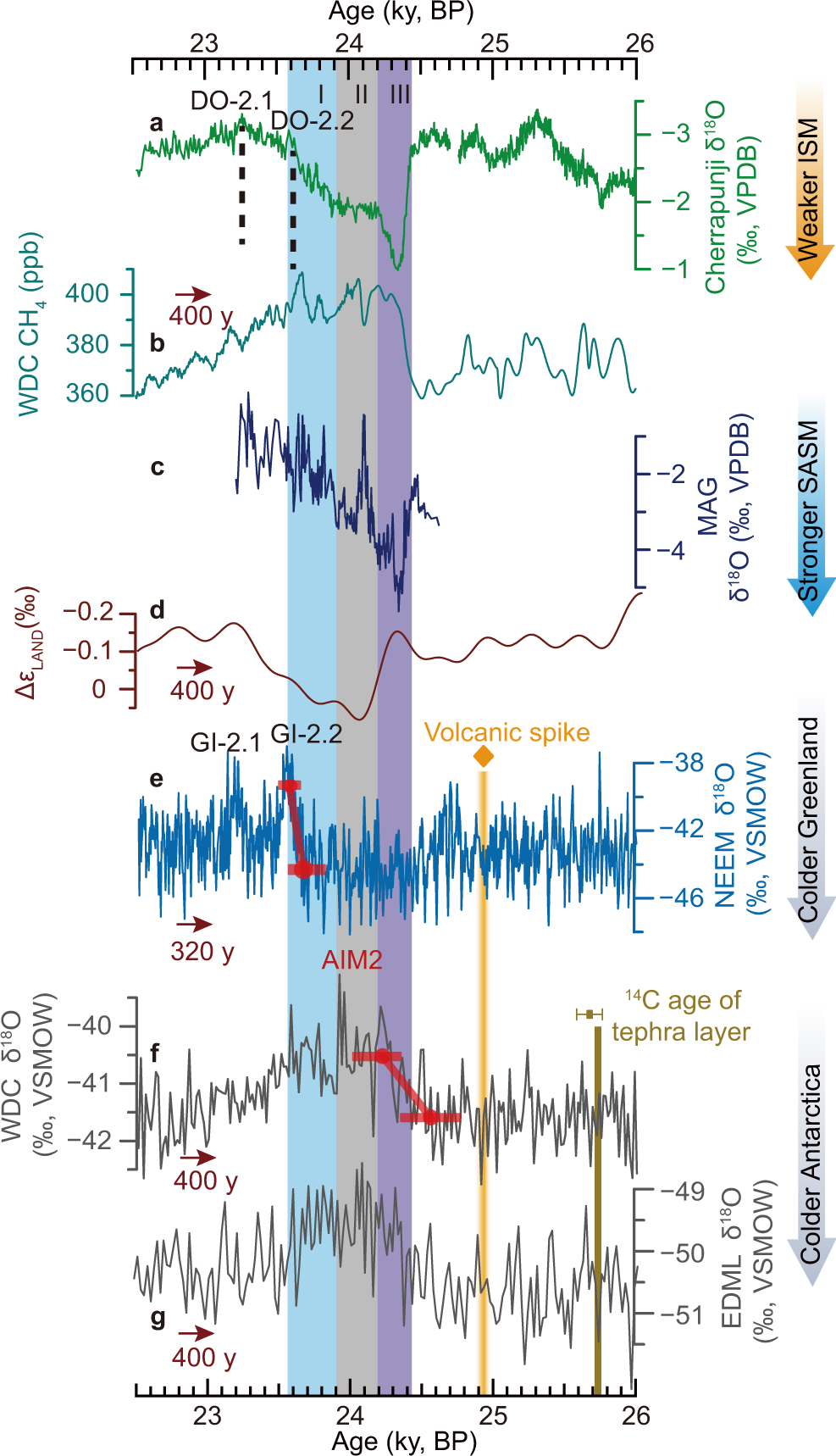

Fig. 4: Comparison between Asian summer monsoon/South American summer monsoon and ice-core records.
From: Coupled atmosphere-ice-ocean dynamics during Heinrich Stadial 2

a Cherrapunji δ18O record (this study) from Cherrapunji Cave in the ISM domain, b Antarctica WDC ice-core CH4 record24, c MAG δ18O record (this study) from Marota Cave in the SASM domain, d Antarctic ice-core composite ΔεLAND proxy71, e Greenland NEEM ice-core δ18O record (Supplementary Note 1.5) on the improved chronology (GICC05 timescale +320 years)(see main text), f, g are Antarctic ice-core δ18O records from WDC13 and EDML95, respectively. Antarctic ice-core records are plotted on the WD2014 chronology63, which is shifted by +400 years via a correlation based on the volcanic triplet spike (depicted by the orange diamond and the vertical bar at ~24.94 ky BP). It is noted that the EDML δ18O record has been tuned to the WD2014 chronology in a previous study16. Red dots and associated error bars in (e) and (f) indicate the timing and combined uncertainties (2σ) of the change points in Greenland and Antarctic ice-core δ18O records (Supplementary Table 2). The Brown error bar depicts the 14C age66 and uncertainty (1σ) of the Oruanui eruption from the Taupo volcano. The vertical bar at ~25.72 ky BP marks the tephra layer of the Oruanui eruption recorded in the WDC ice core64. The two vertical dashed lines depict the DO-2.1 and DO-2.2 peaks. Cave, ice-core and volcano locations are shown in Supplementary Fig. 2. Vertical bars are the same as in Fig. 2. AIM Antarctic isotope maximum95, ppb parts per billion, ISM Indian summer monsoon, SASM South American summer monsoon.
