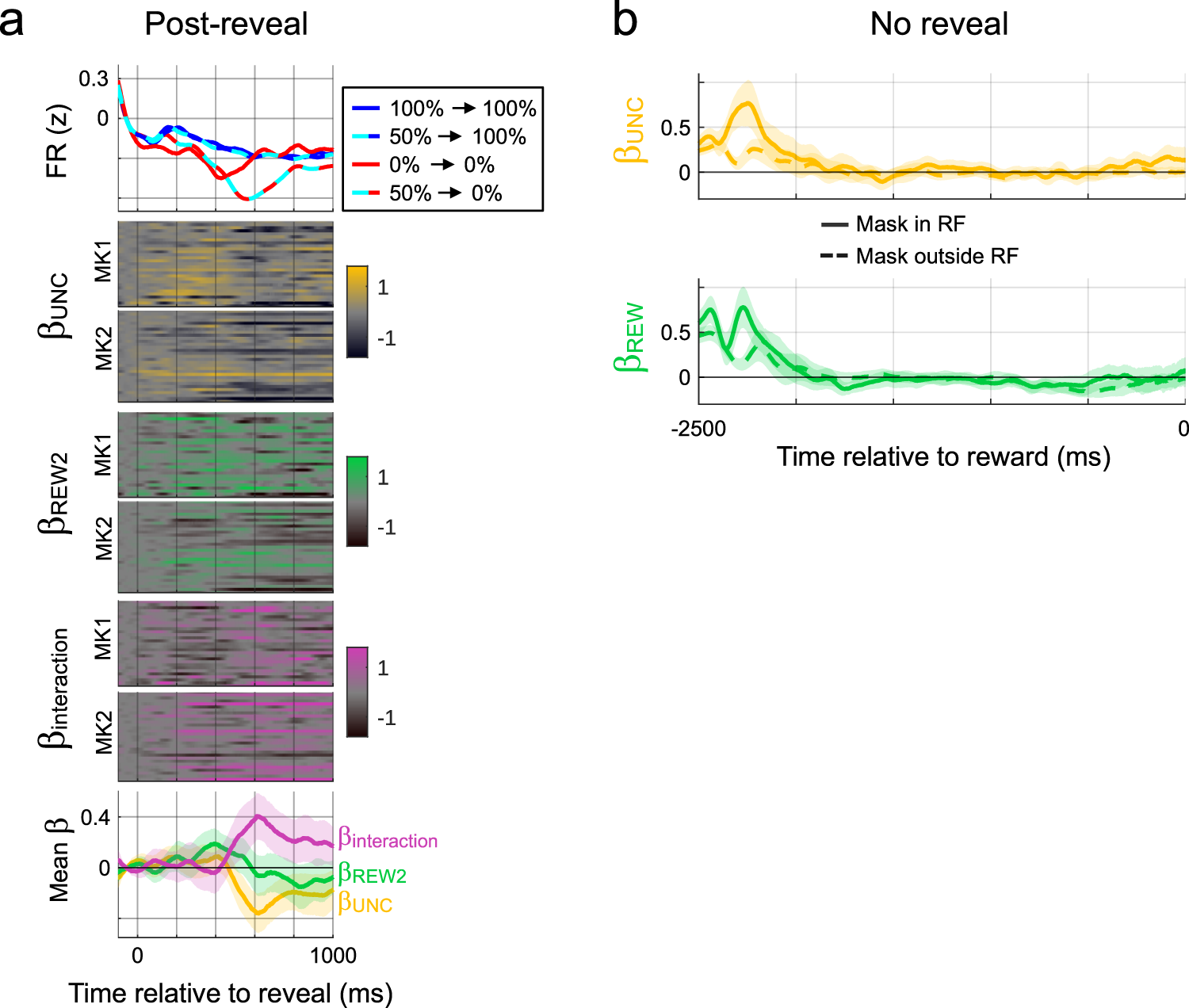

Fig. 6: LIP neurons responded to new visual information.
From: Uncertainty modulates visual maps during noninstrumental information demand
a Responses to the information conveyed by Cue 2. Top: Firing rates on trials in which Cue 2 was revealed, aligned on the time of reveal. PSTHs show average firing for the possible combinations of reward and uncertainty resolved by Cue 2 (n = 60 cells with at least 2 trials in each condition). Pre-reveal firing was subtracted to remove effects of Cue 1. Heatmaps show time-resolved regression coefficients (uncertainty, reward and interaction) for each neuron included in the top panel. The bottom panel shows the average coefficients (shading shows ±2 SEM). b Lack of anticipation of information on no-reveal trials. The panels show uncertainty and reward coefficients on no-reveal trials, aligned on the time of reward onset (mean and ±2 SEM, n = 59/68 cells for mask in/outside RF with at least 2 trials in each condition). Source data are provided as a Source Data file.
